Defining an SNMP Manager

For JetPatch Agent Manager to be able to send SNMP traps, you need to define an SNMP Manager.

To define an SNMP Manager:

1. Make sure that organizational firewalls allow SNMP traffic (usually UDP port 162) from the JatAgent Server to the SNMP Manager.
2. Log in as an Administrator.
3. Go to Settings > SNMP, and click Edit Configuration.

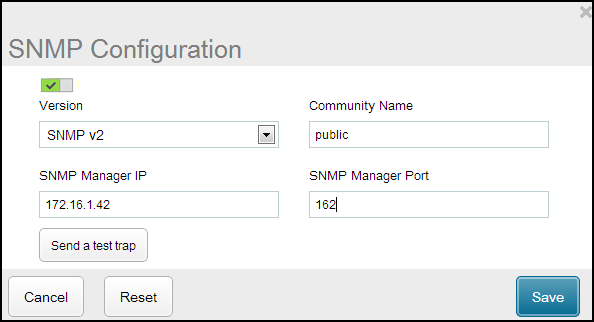

4. Enable the configuration, and configure the SNMP settings as defined by your organizational SNMP administrator:



   You can Send a test trap.

5. Click Save.
