Authentication with Microsoft Entra ID (fka Azure AD)

Pre-Req

JetPatch Application server must be able to communicate with the Microsoft Entra (fka Azure AD) authentication endpoint. For most customers, that will be https://login.microsoftonline.com

See this Microsoft article for more details.

Main Flow

In order to apply Microsoft Entra Single Sign-On (SSO) we need to configure Entra ID and then configure JetPatch. From Entra ID configuration we will retrieve next properties for intigua.properties file :

  • azure.activedirectory.tenant-id
  • spring.security.oauth2.client.registration.azure.client-id
  • spring.security.oauth2.client.registration.azure.client-secret
  • spring.security.oauth2.client.registration.azure.redirect-uri
  • azure.activedirectory.user-group.allowed-groups

Configuring Active Directory

Configuring Entra ID is complicated, and some GUI of Entra ID could change. We will go step-by-step and provide screenshots.

(Optional) Create tenant if needed

Entra provides tenants, which are basically instances that you can use.

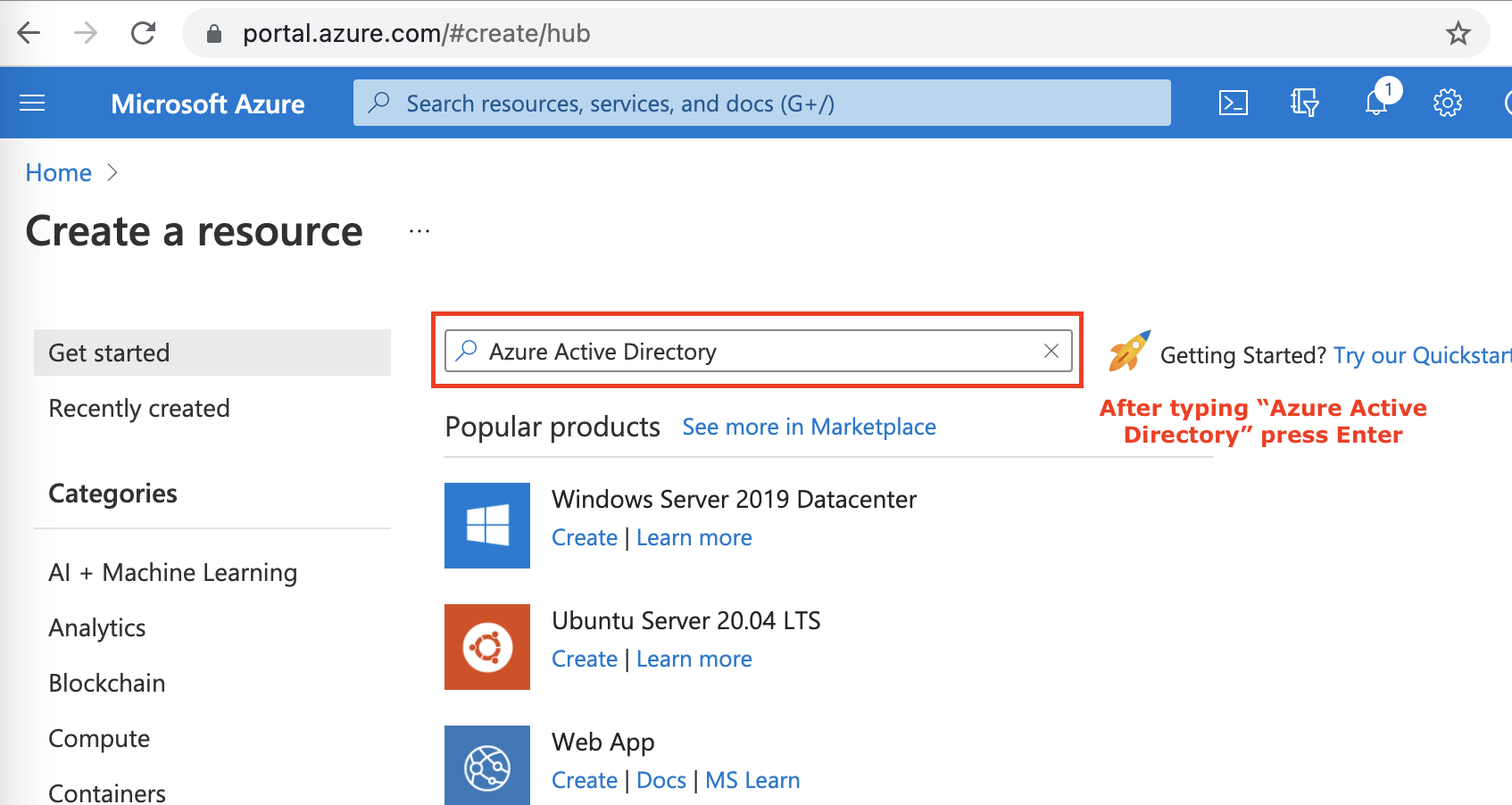

  • Search "Azure Active Directory"image16.png

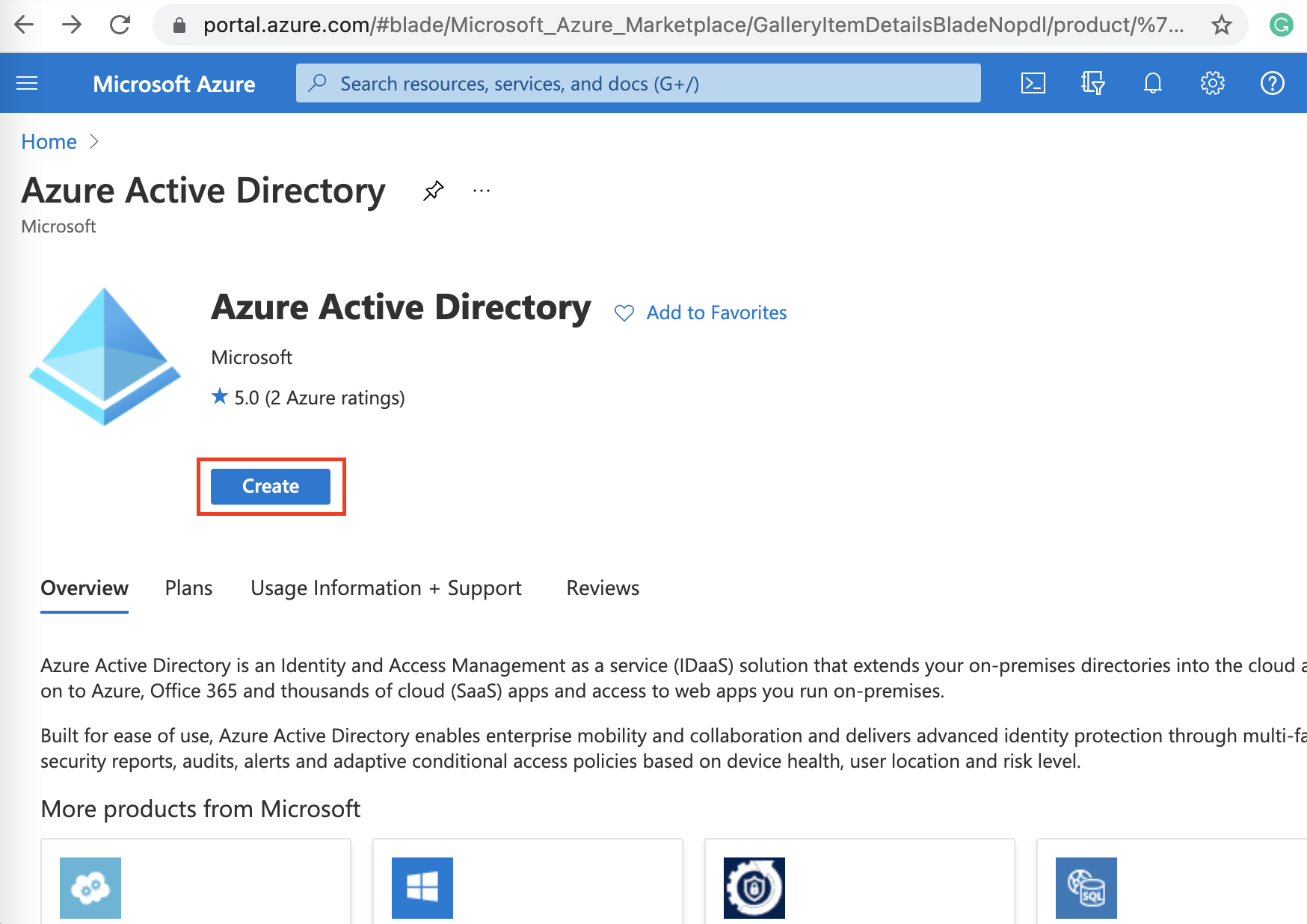

  •  Click "create" and fill all necessary dataimage38.png

Switch to a tenant you want to work with

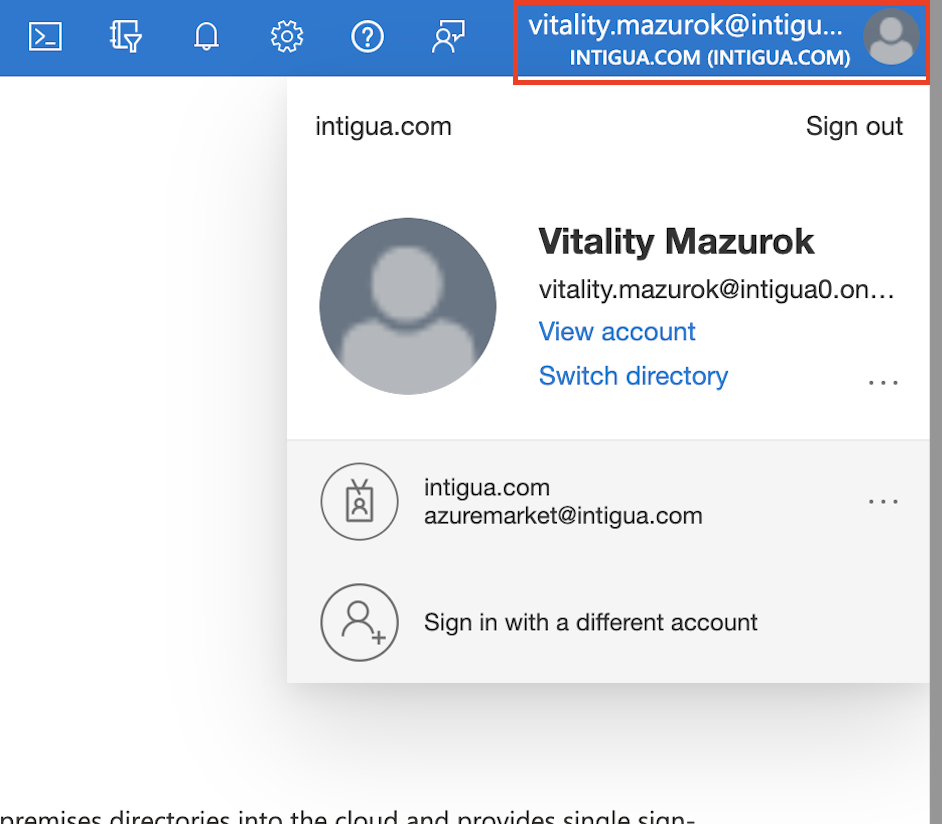

Click on user icon on the top menu

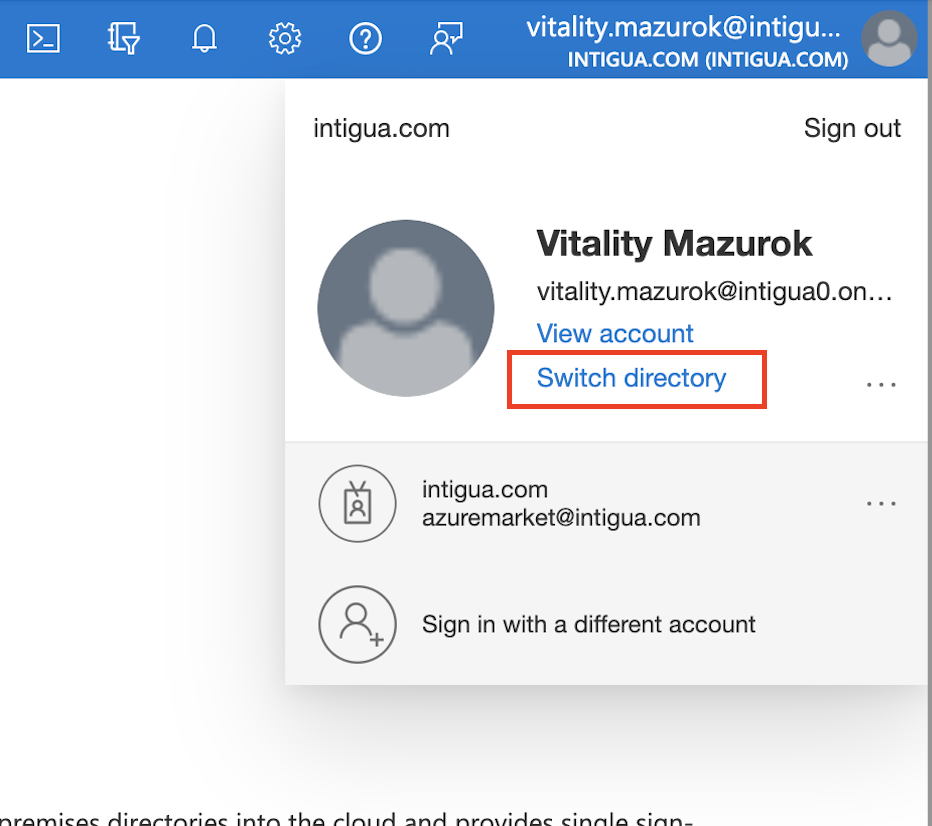

Click on “Switch directory” reference


Creation App Registration

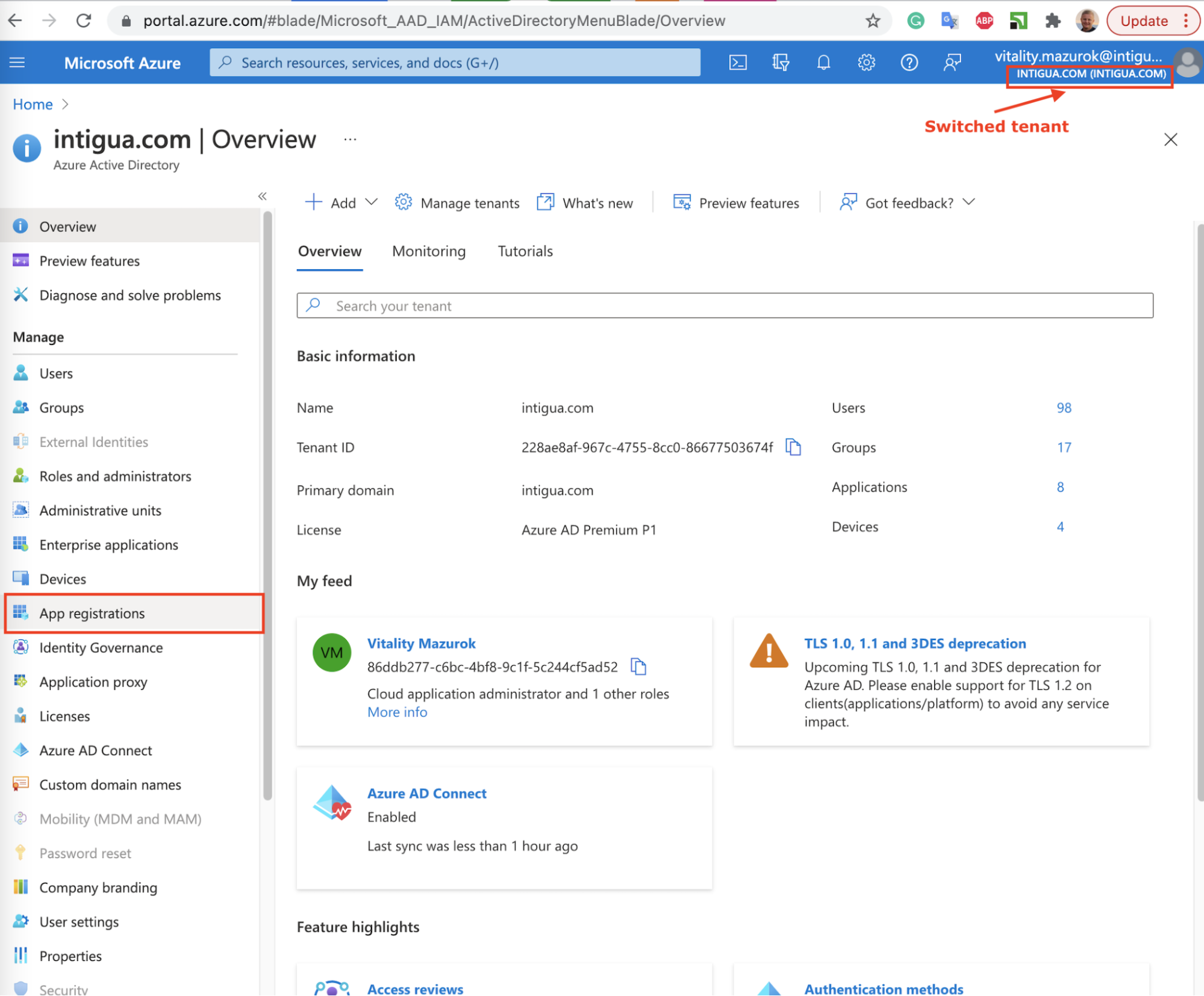

Once you have switched to your tenant, select "Active Directory"

image47.pngFor the next steps you will need full admin rights.

Click on "App registrations"

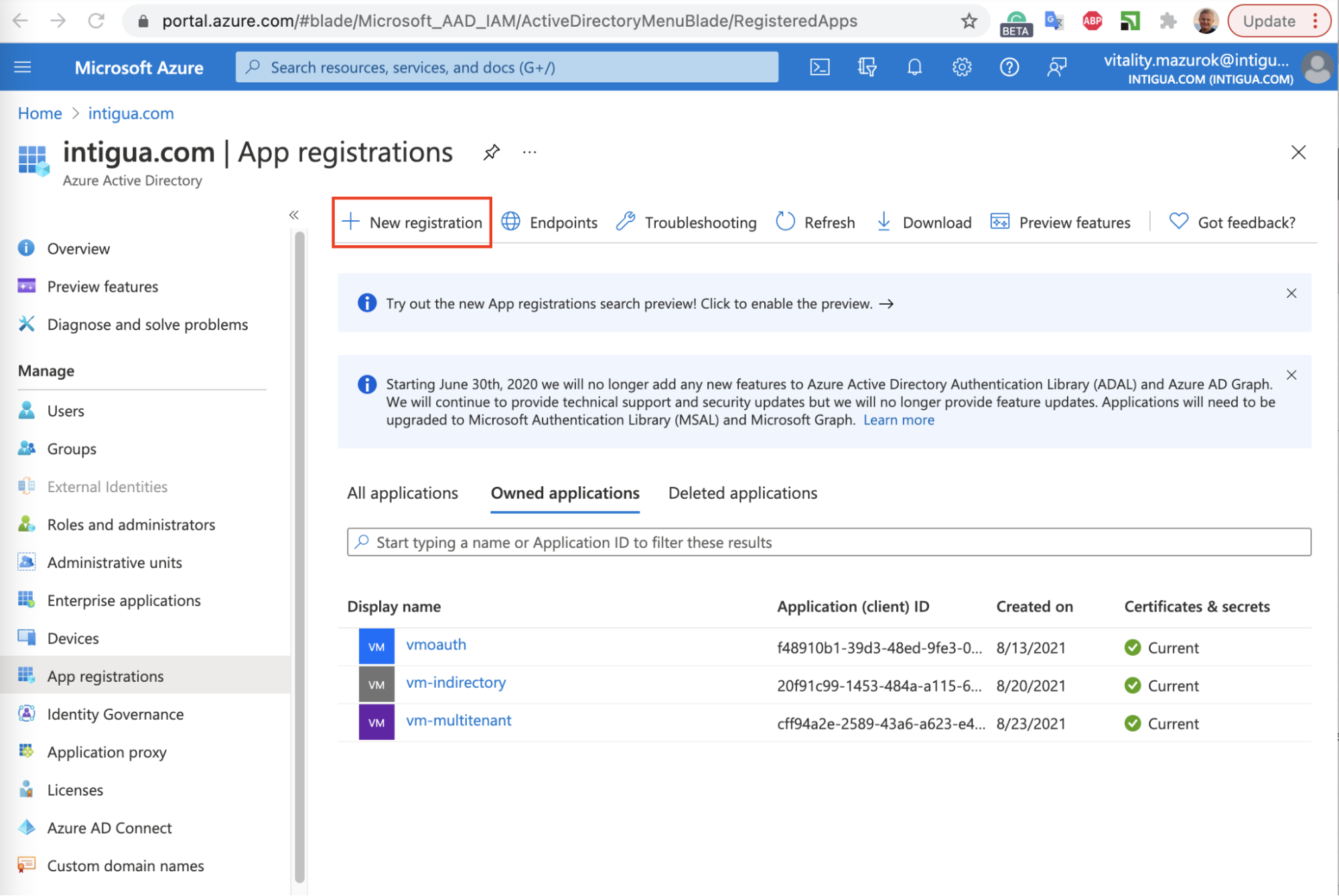

Create a new registration via clicking “New Registration” button


Please note that:

  • The account type must be "multitenant". The current Spring Boot starter does not work with single tenants. However users from different tenants will not be able to login - only users belonging to the tenant the ‘app registration’ was created for are allowed to login - this is also demonstrated in page # 37.

  • The redirect URL pattern https://{ip-or-dns-where-jetpatch-will-be-installed}/vmanage-server/oauth2/code/azure. This url we will use as value for spring.security.oauth2.client.registration.azure.redirect-uri property. If this URL do not match with URL we specify in intigua.properties, you will not be able to log in.

Click button “register”


Now we could get  2 properties that we need in JetPatch

azure.activedirectory.tenant-id

spring.security.oauth2.client.registration.azure.client-id




Select "Authentication"


In the Web "Platform configuration", check both options under "Implicit grant and hybrid flows" and click “Save” button


Click on "Certificates & secrets"

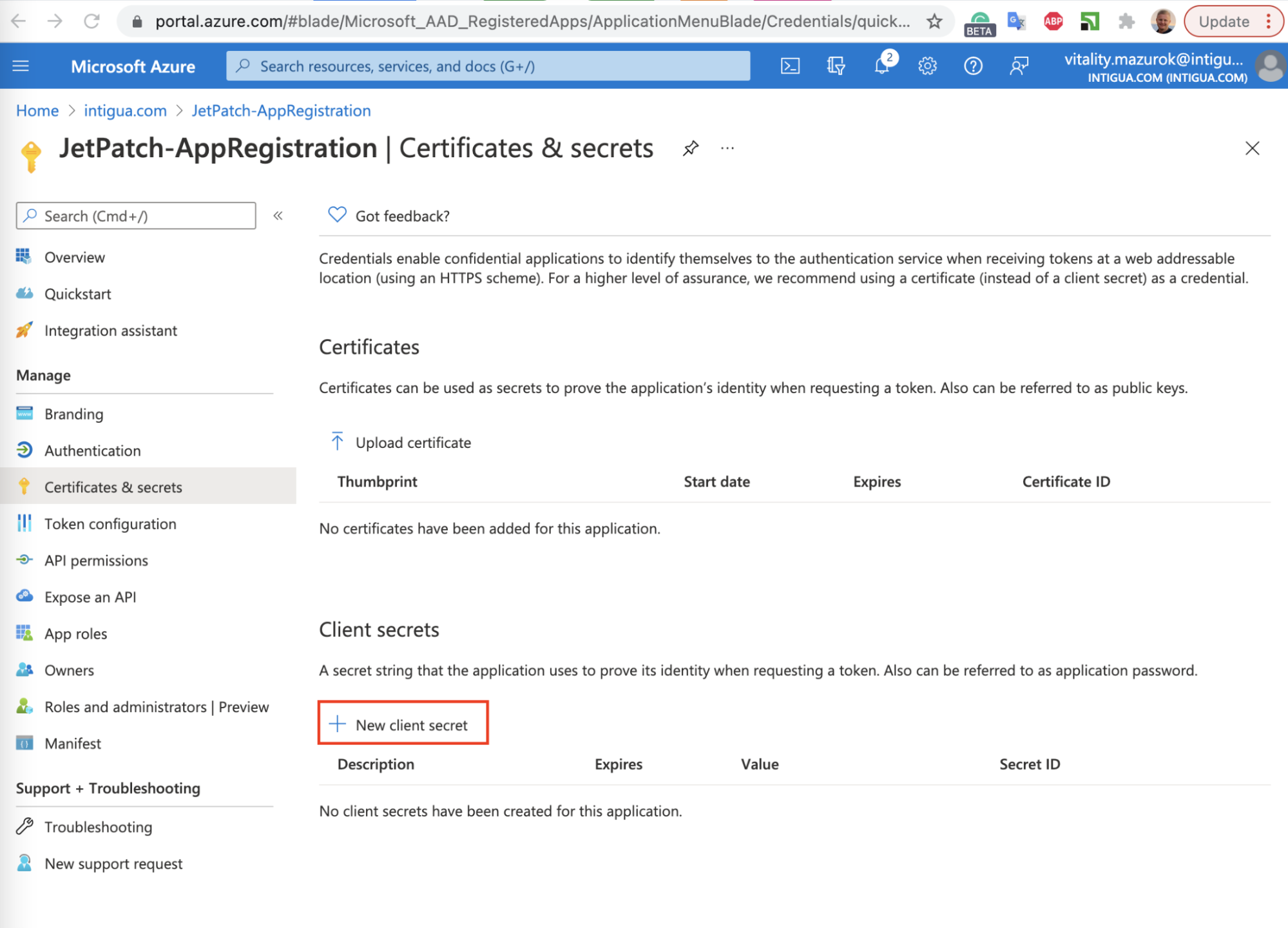

Click “New client secret” button to create a new client secret, which will be value for spring.security.oauth2.client.registration.azure.client-secret property

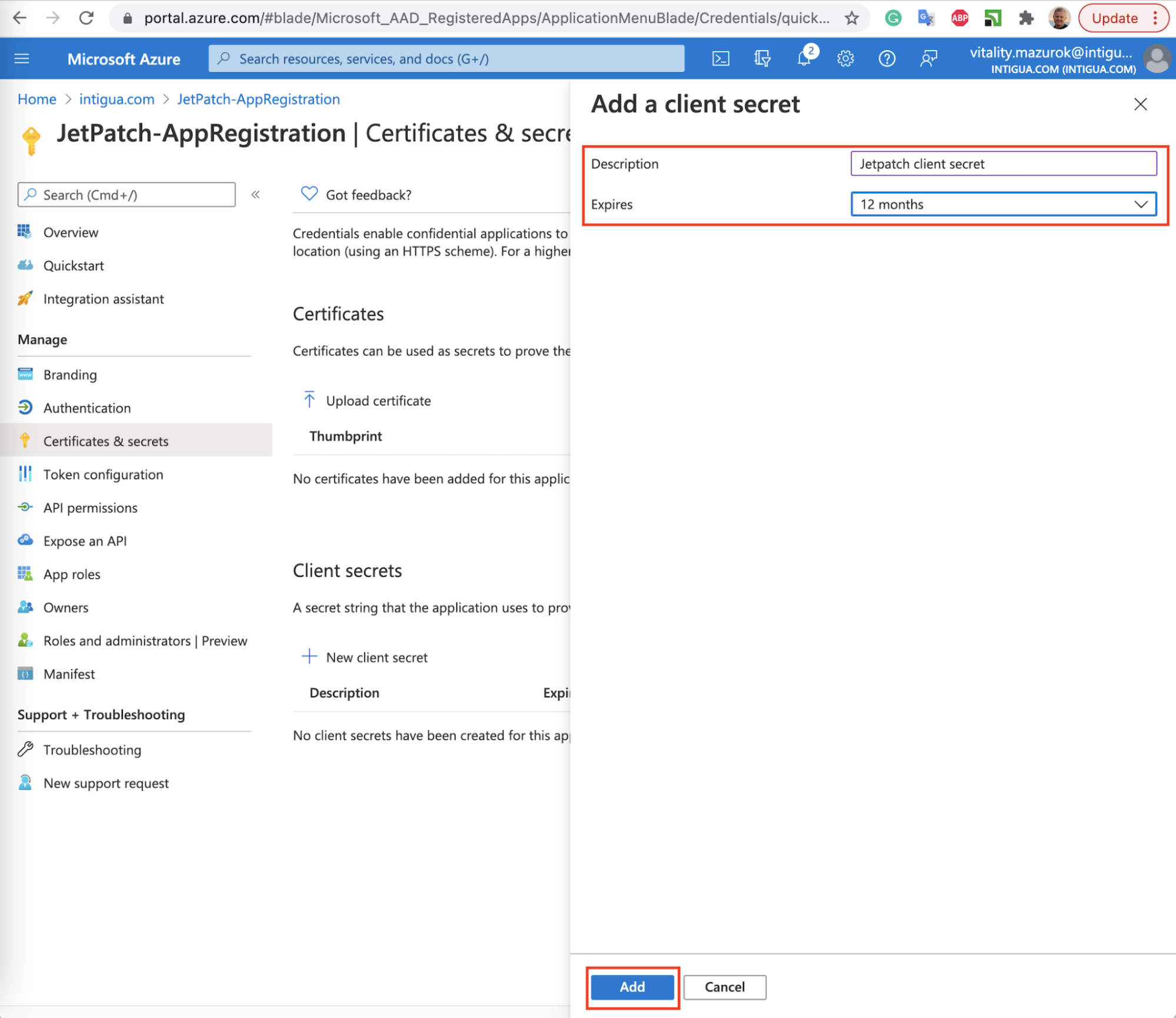

Provide description that you prefer and expiration date, then click “Add” button

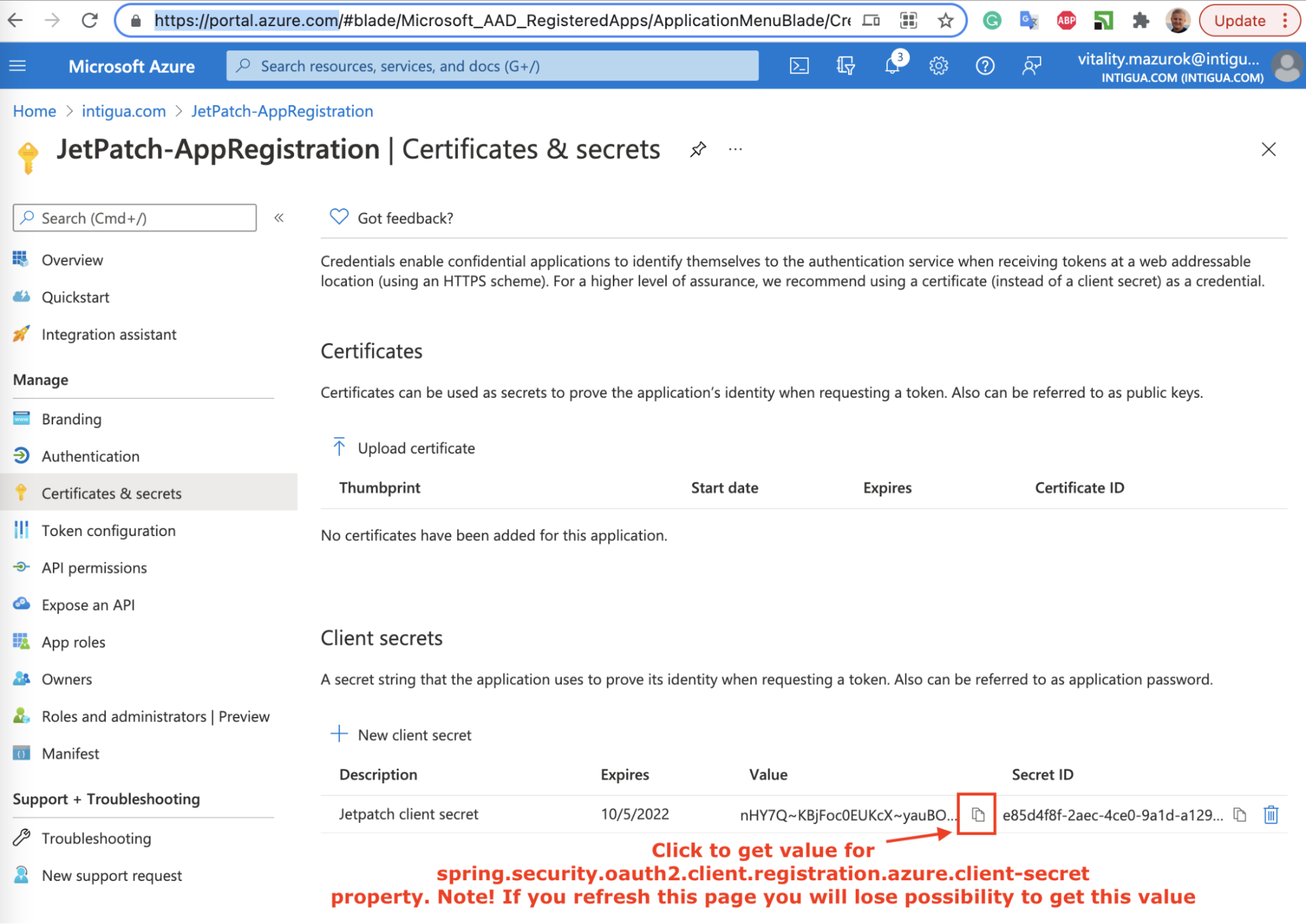

Click “copy to clipboard” icon to get value for

spring.security.oauth2.client.registration.azure.client-secret

property.
Note! If you refresh this page you will lose possibility to get this value

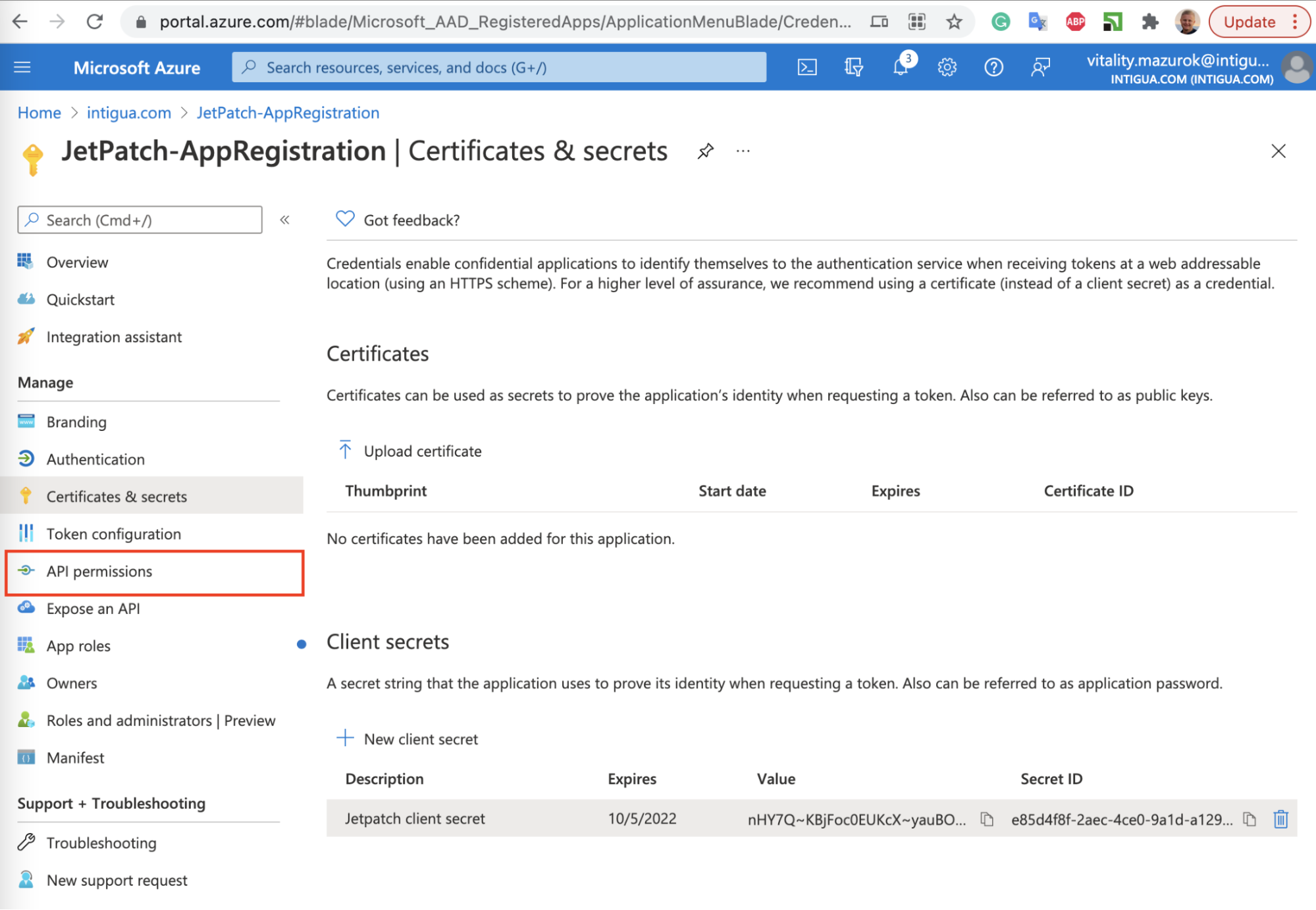

Click on "API permissions"

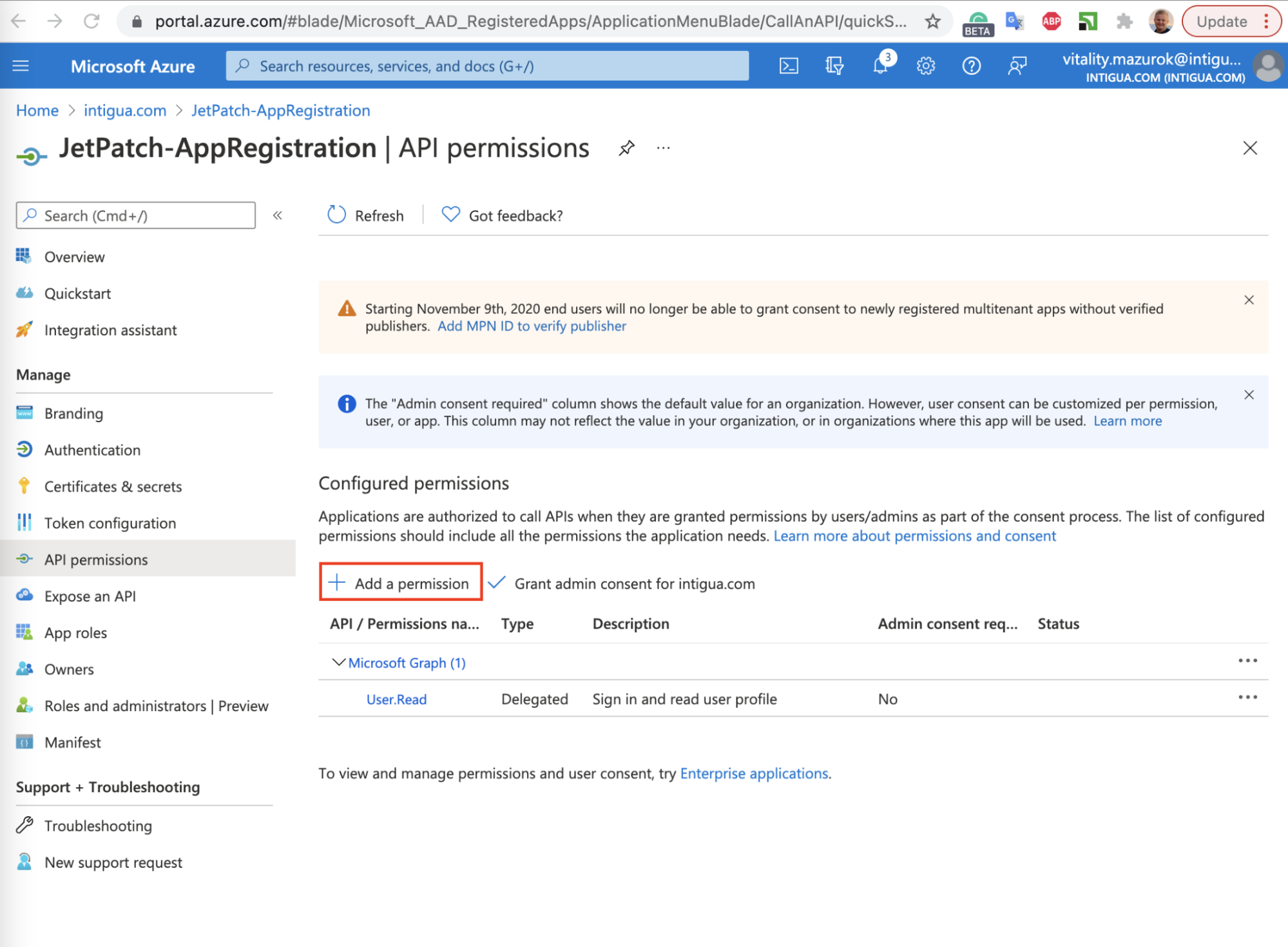

image11.pngClick “Add a permission” button

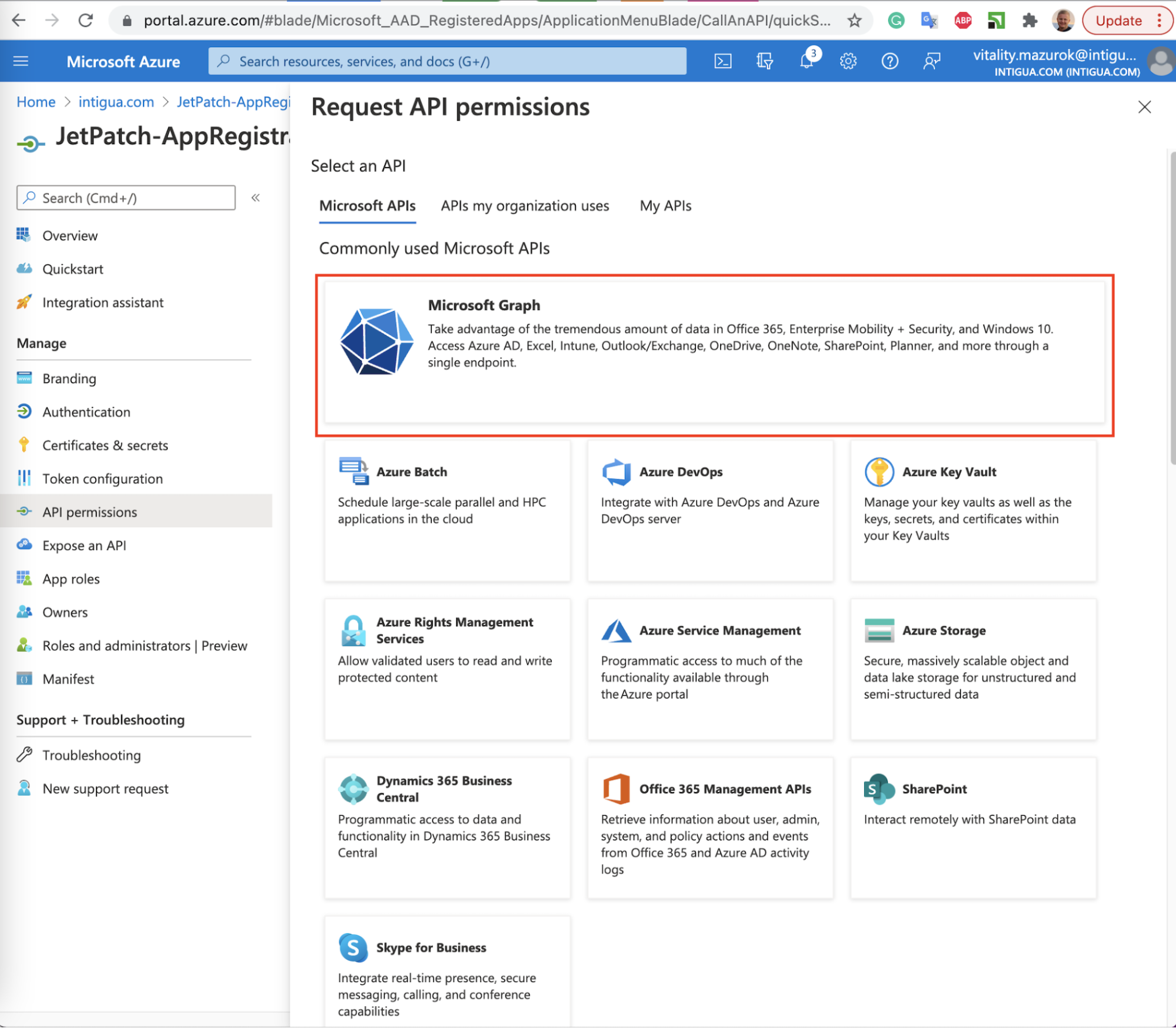

Click "Microsoft Graph" section button

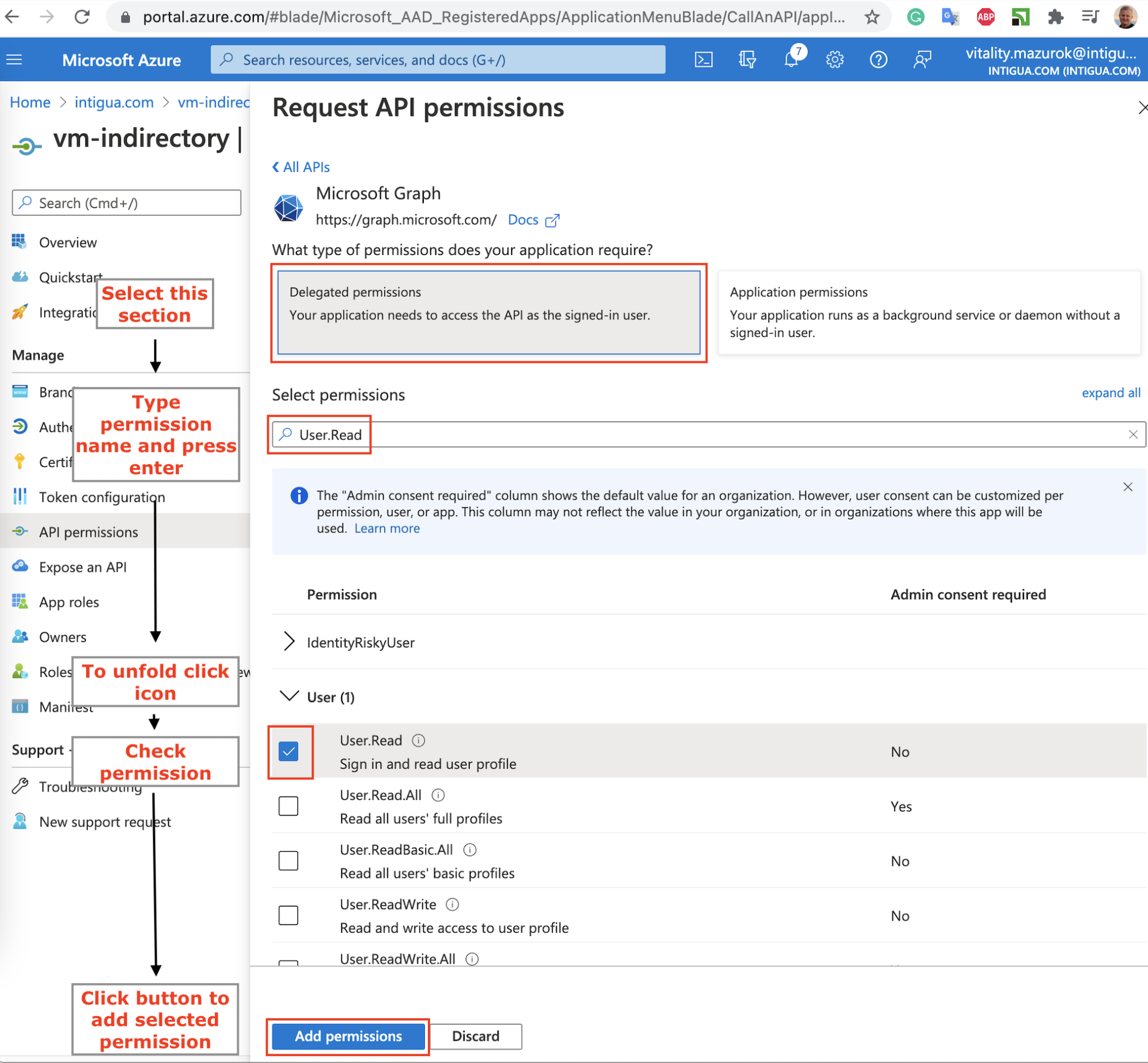

Follow the instruction on the image to add "User.Read" permissions


Click on the "Grant admin consent" button

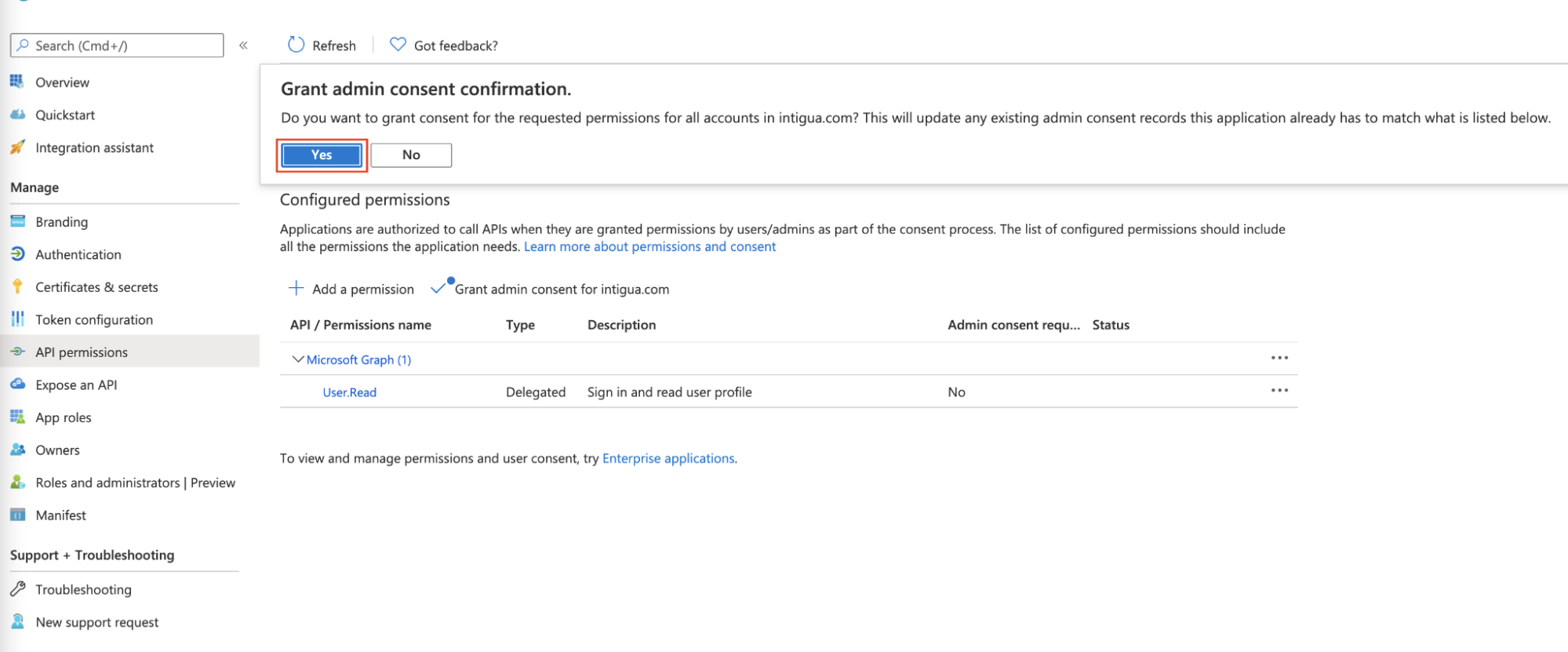

Click “Yes” in popup message


Configure Token to get group information

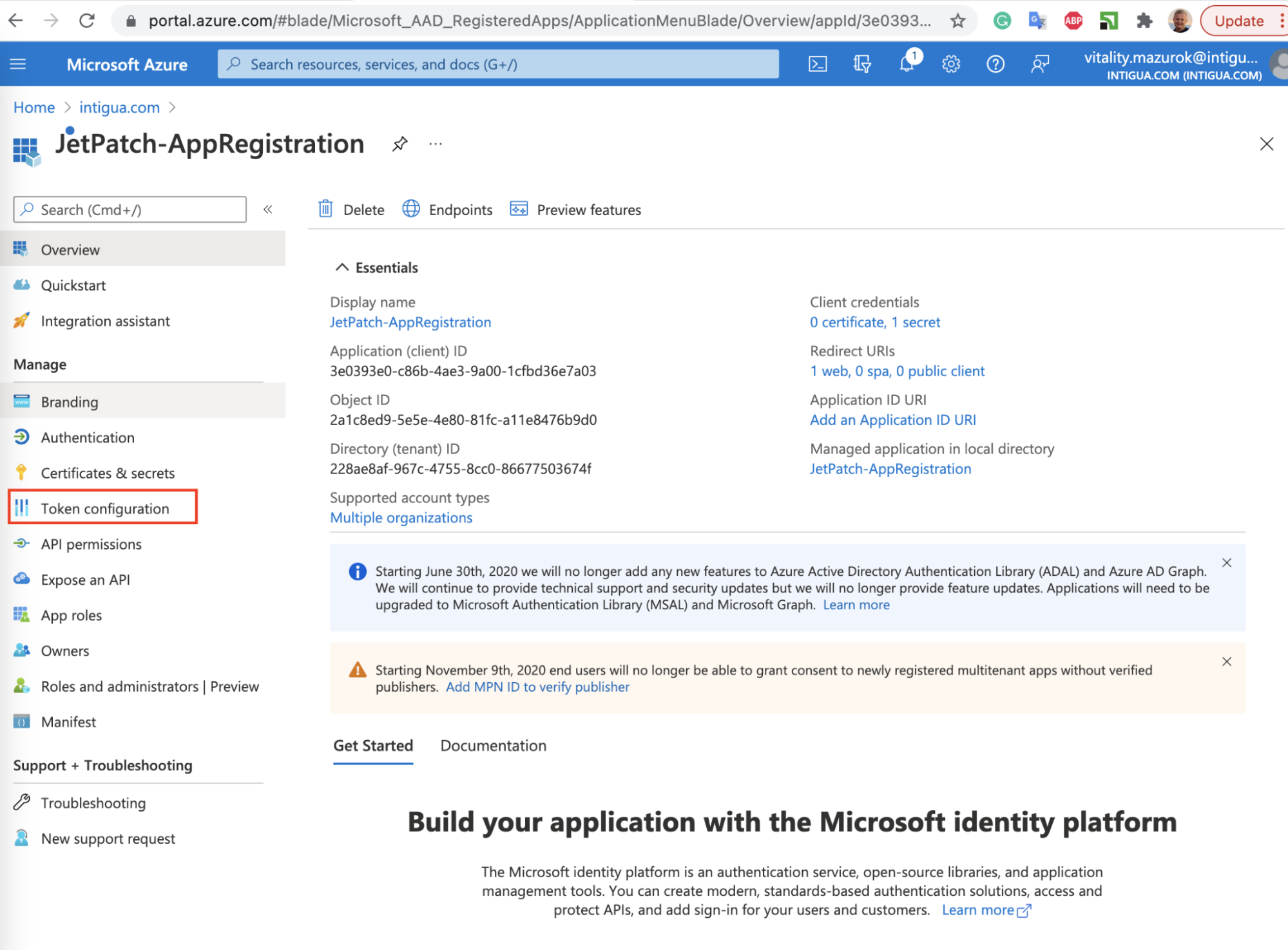

Click on “Token configuration” button

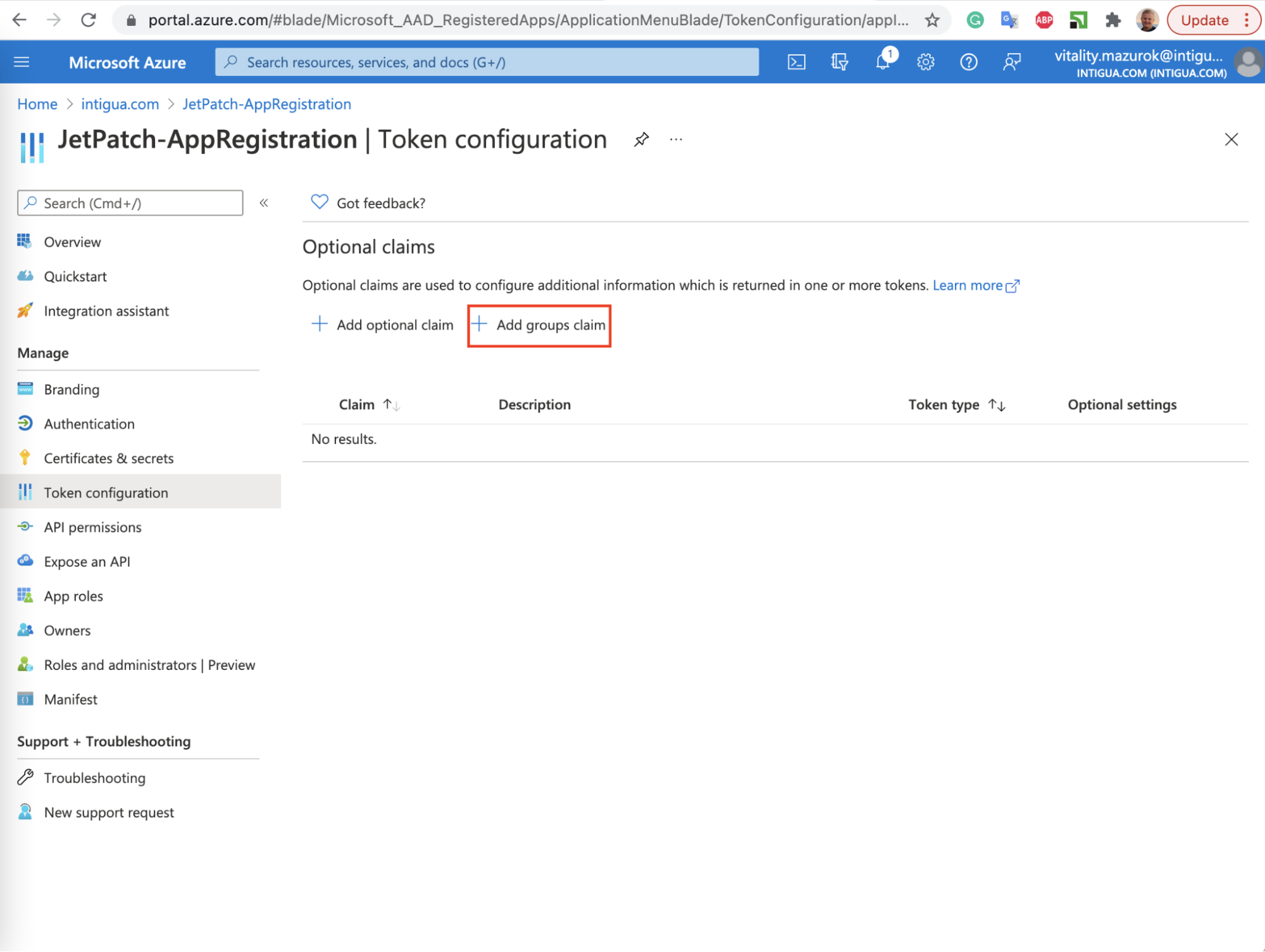

Click on “Add groups claim” button

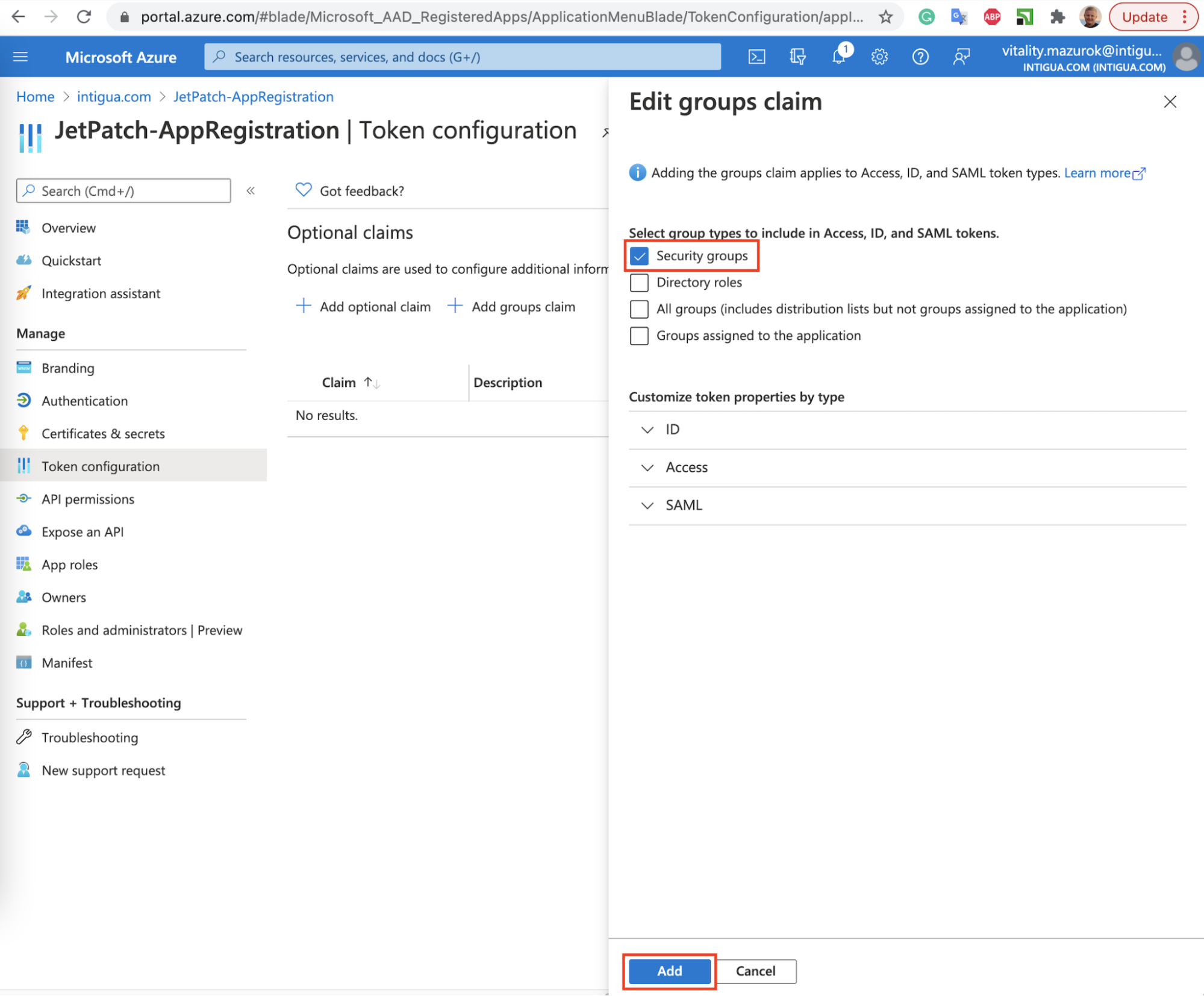

Select “Security groups” checkbox, and then click on “Add” button

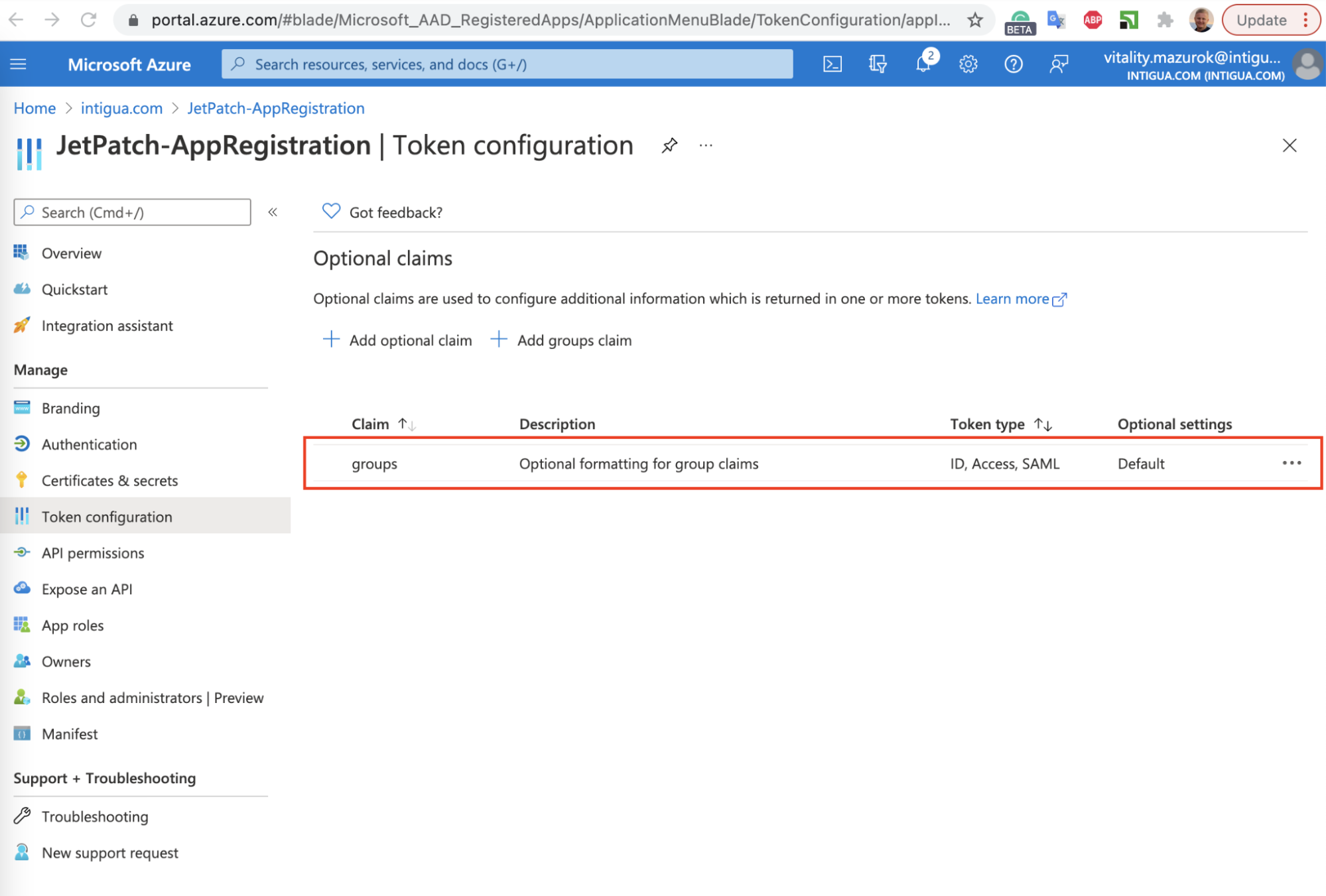

You will see that claims is added

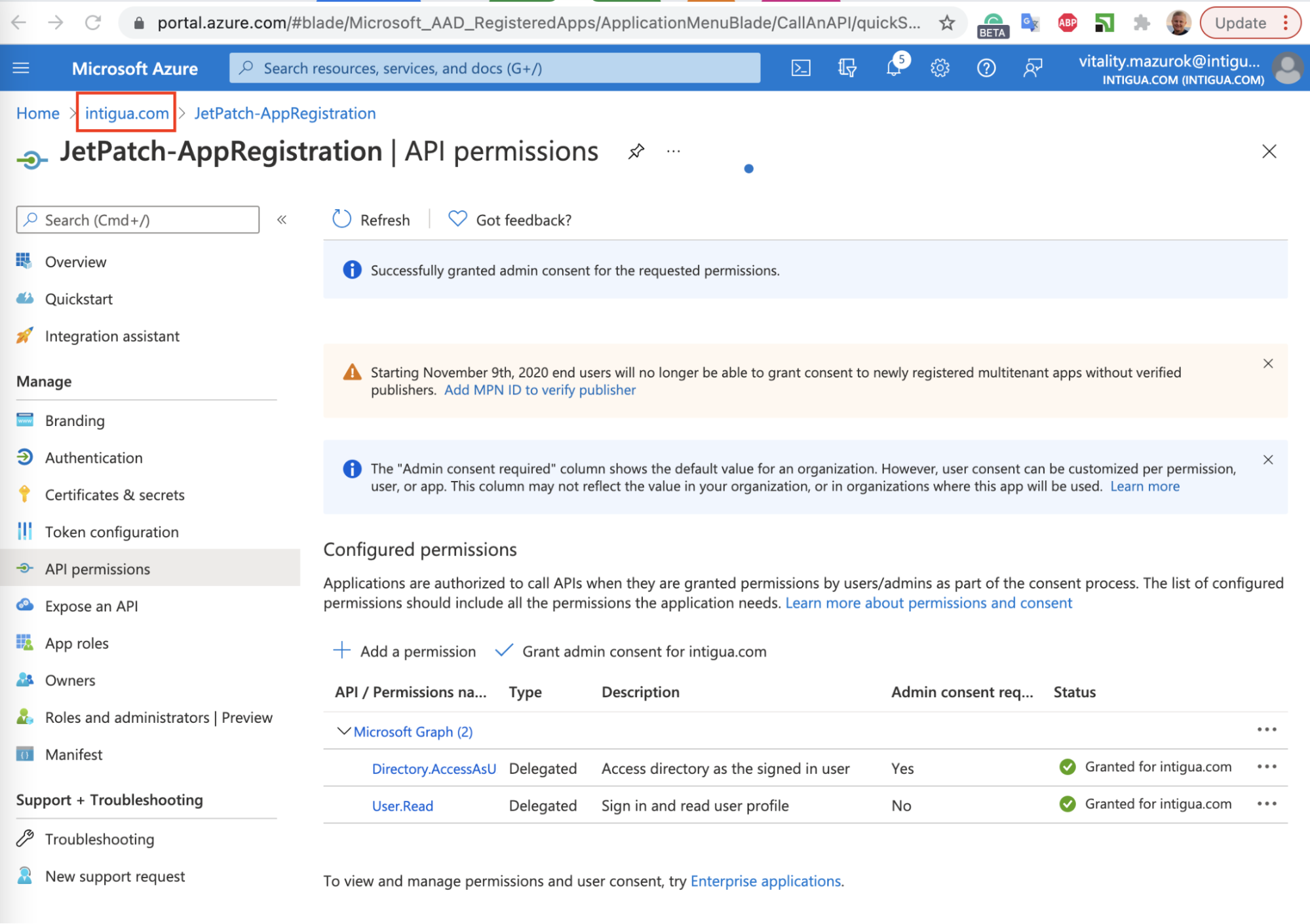

Go back to your Active Directory tenant via clicking on tenant name link and click on "User settings"

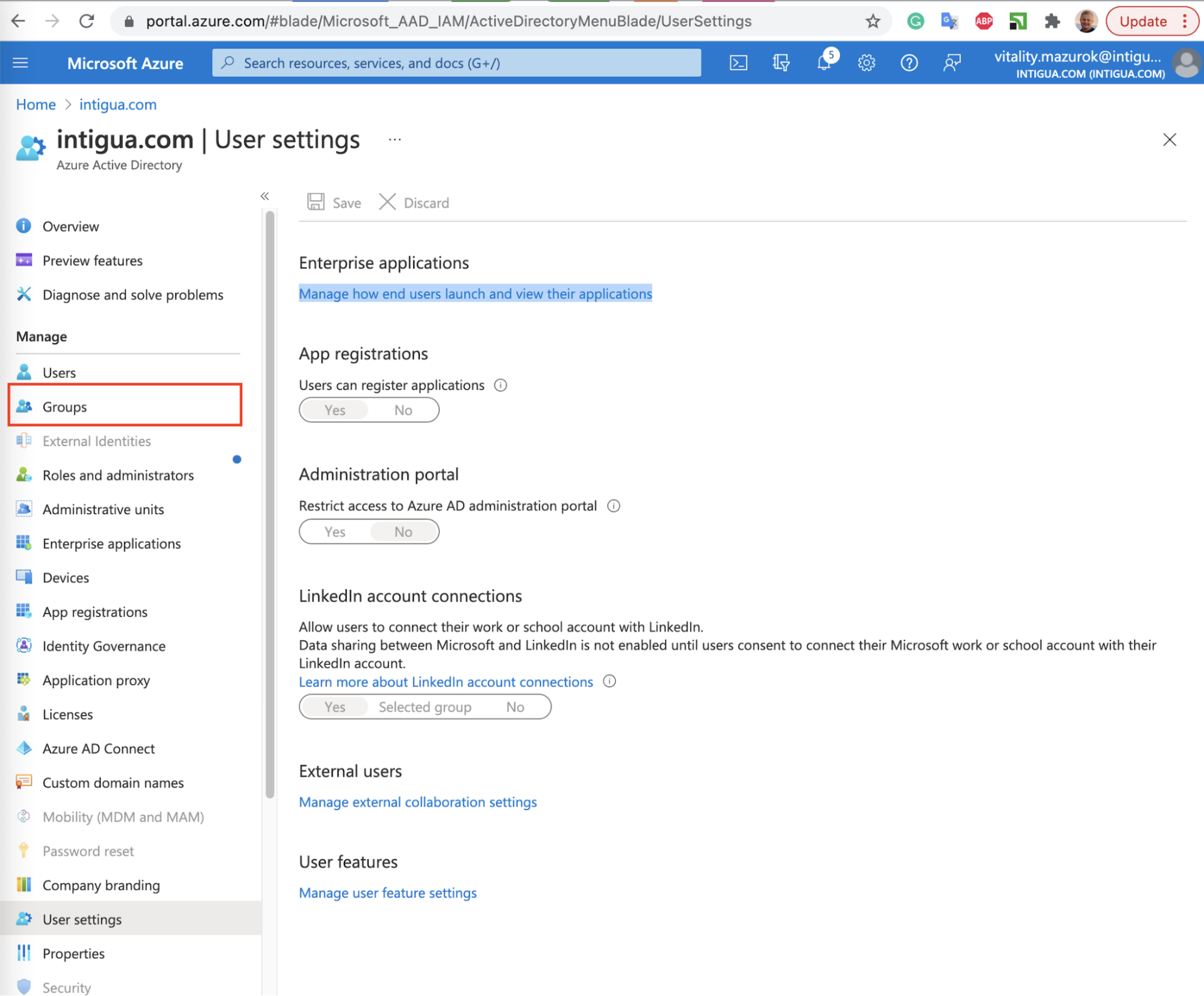

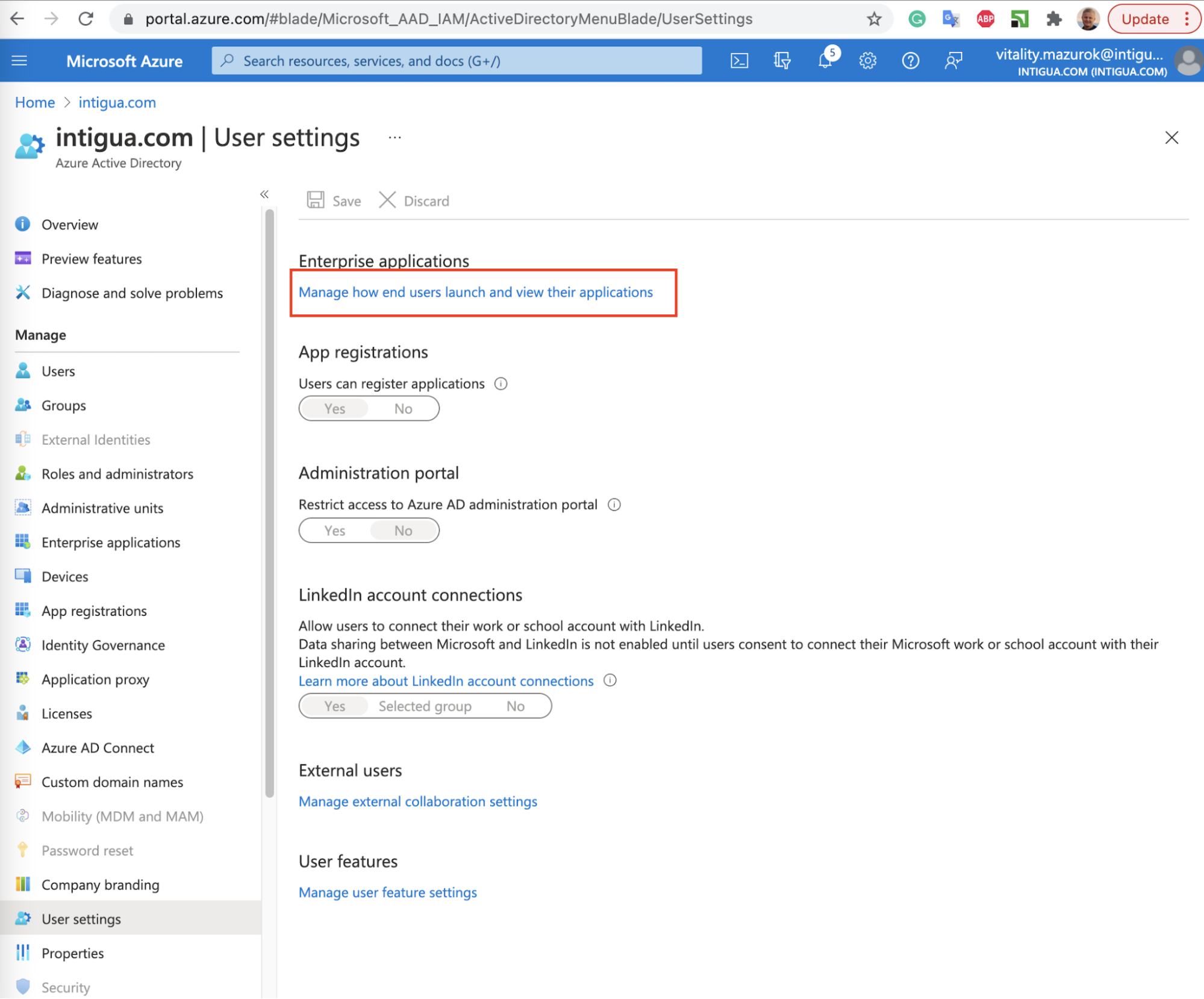

Click “Manage how end users launch and view their applications” link

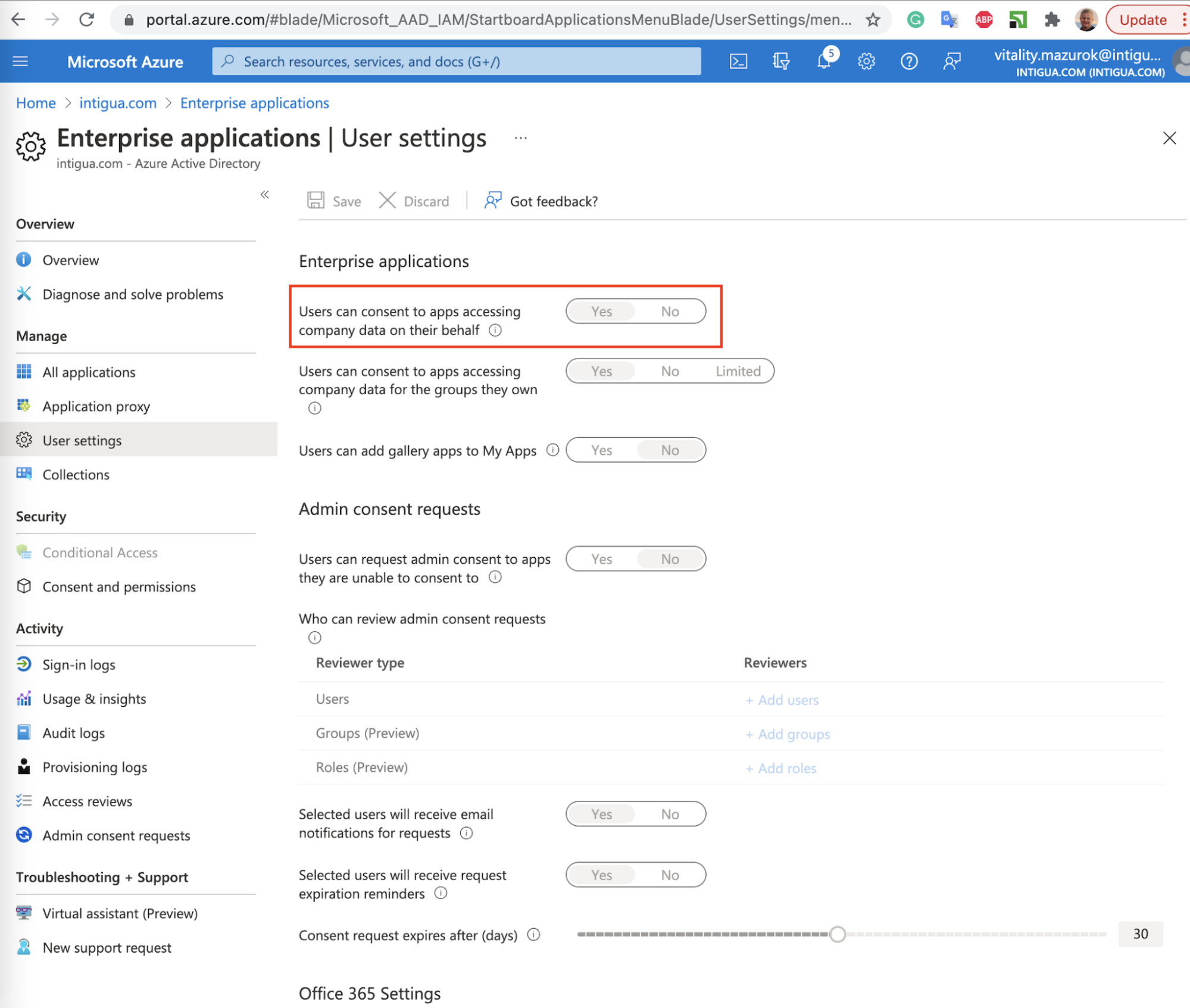

Validate the "Users can consent to apps accessing company data on their behalf" is set to "Yes" (this should be good by default)


Go back to your Active Directory tenant via clicking on tenant name link



Click “Groups” button

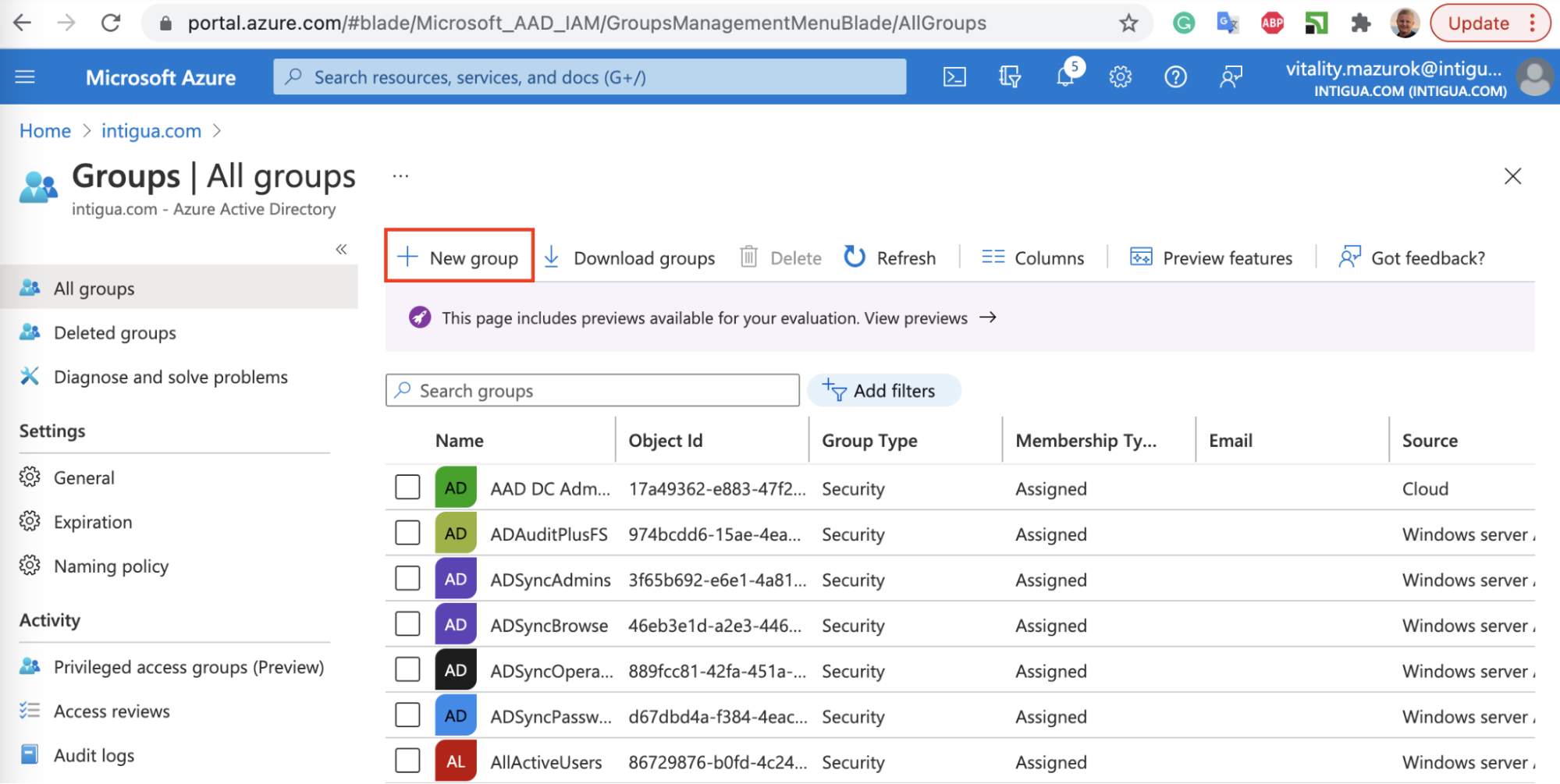

Click “New group” button

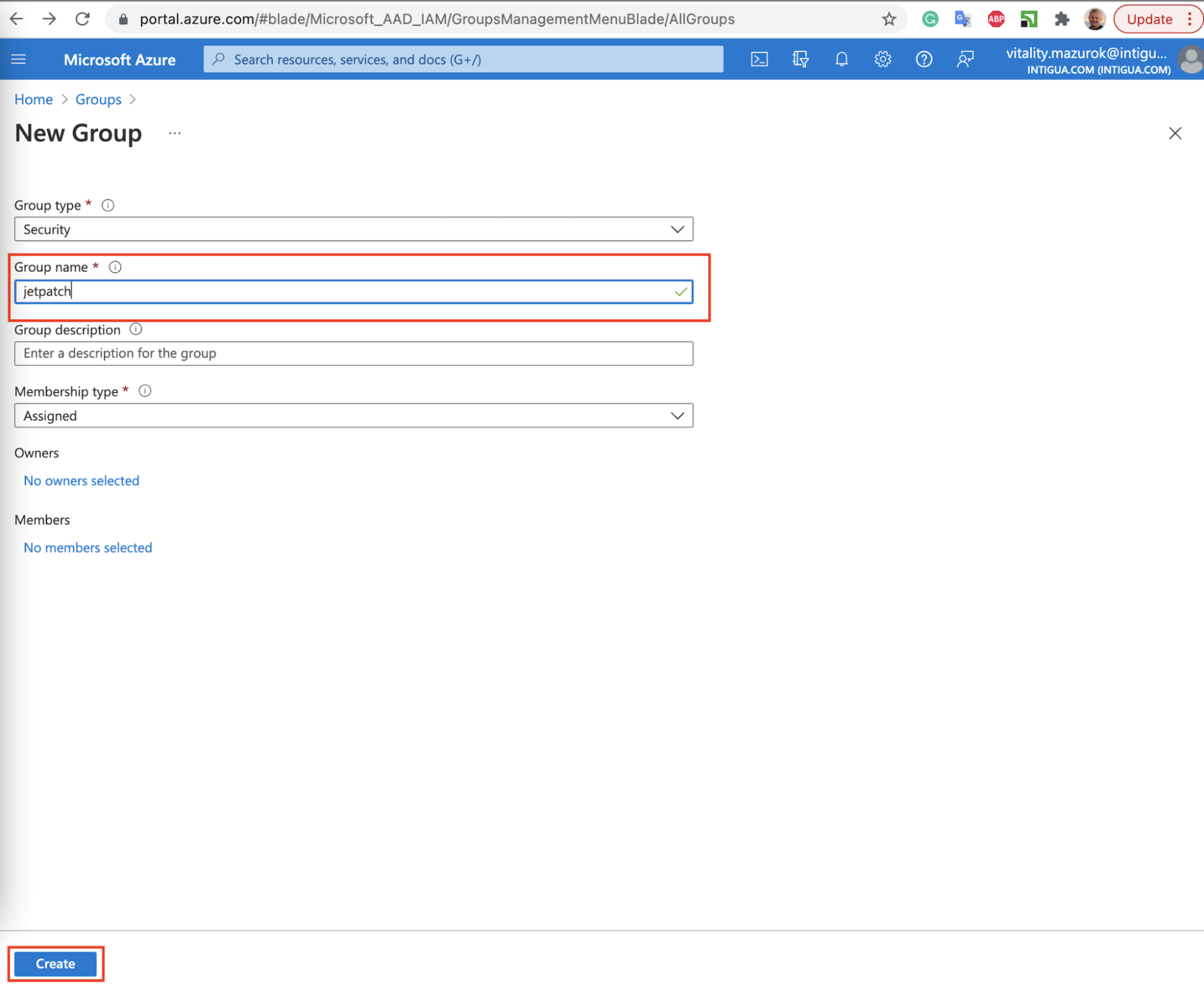

Provide group name and click the ”Create” button. Specify jetpatch as “Group name”, click “Create”

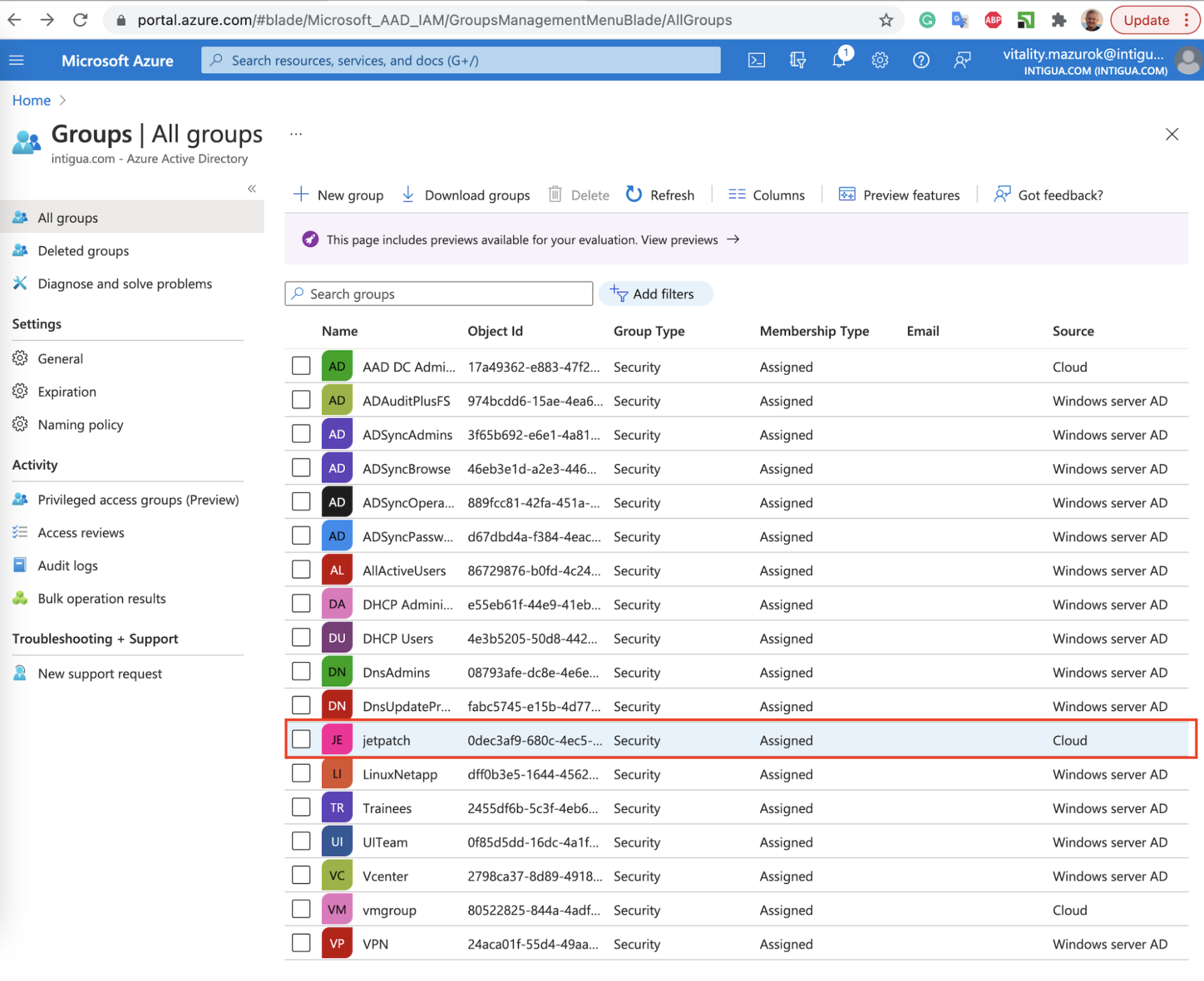

You will be redirected to list of groups, find group that you create and click on corresponding list item

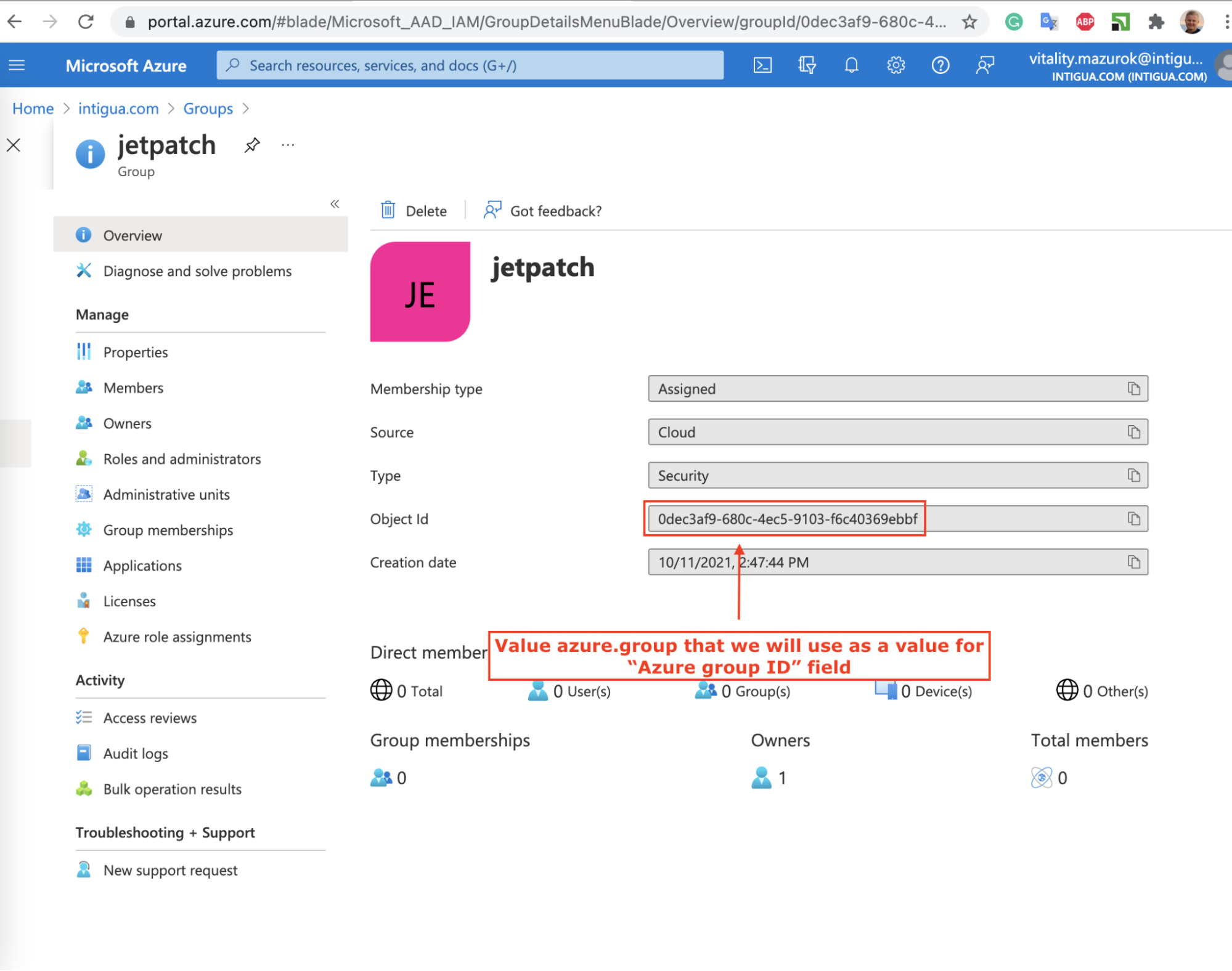

You will be redirected to group overview page. On this page you will copy the id of the created group. This id will be used as a name of JetPatch Azure group



After group is created we could assign users to that group


Now we have all properties

azure.activedirectory.tenant-id

spring.security.oauth2.client.registration.azure.client-id

spring.security.oauth2.client.registration.azure.client-secret

Spring.security.oauth2.client.registration.azure.redirect-uri

And value for JetPatch Azure group

azure.group



Configuring JetPatch

Edit intigua.properties file

vim /usr/share/tomcat/default/conf/intigua.properties

Add next properties



azure.activedirectory.tenant-id=228ae8af-967c-4755-8cc0-86677503674f

spring.security.oauth2.client.registration.azure.client-id=3e0393e0-c86b-4ae3-9a00-1cfbd36e7a03

spring.security.oauth2.client.registration.azure.client-secret=nHY7Q~KBjFoc0EUKcX~yauBOk4ziQ.mWsDCJc

spring.security.oauth2.client.registration.azure.redirect-uri=https://dns-name/vmanage-server/oauth2/code/{registrationId}

azure.activedirectory.user-group.allowed-groups=azure_lib_requirea_not_empty_value



Restart Tomcat

service tomcat restart



Register JetPatch Azure group

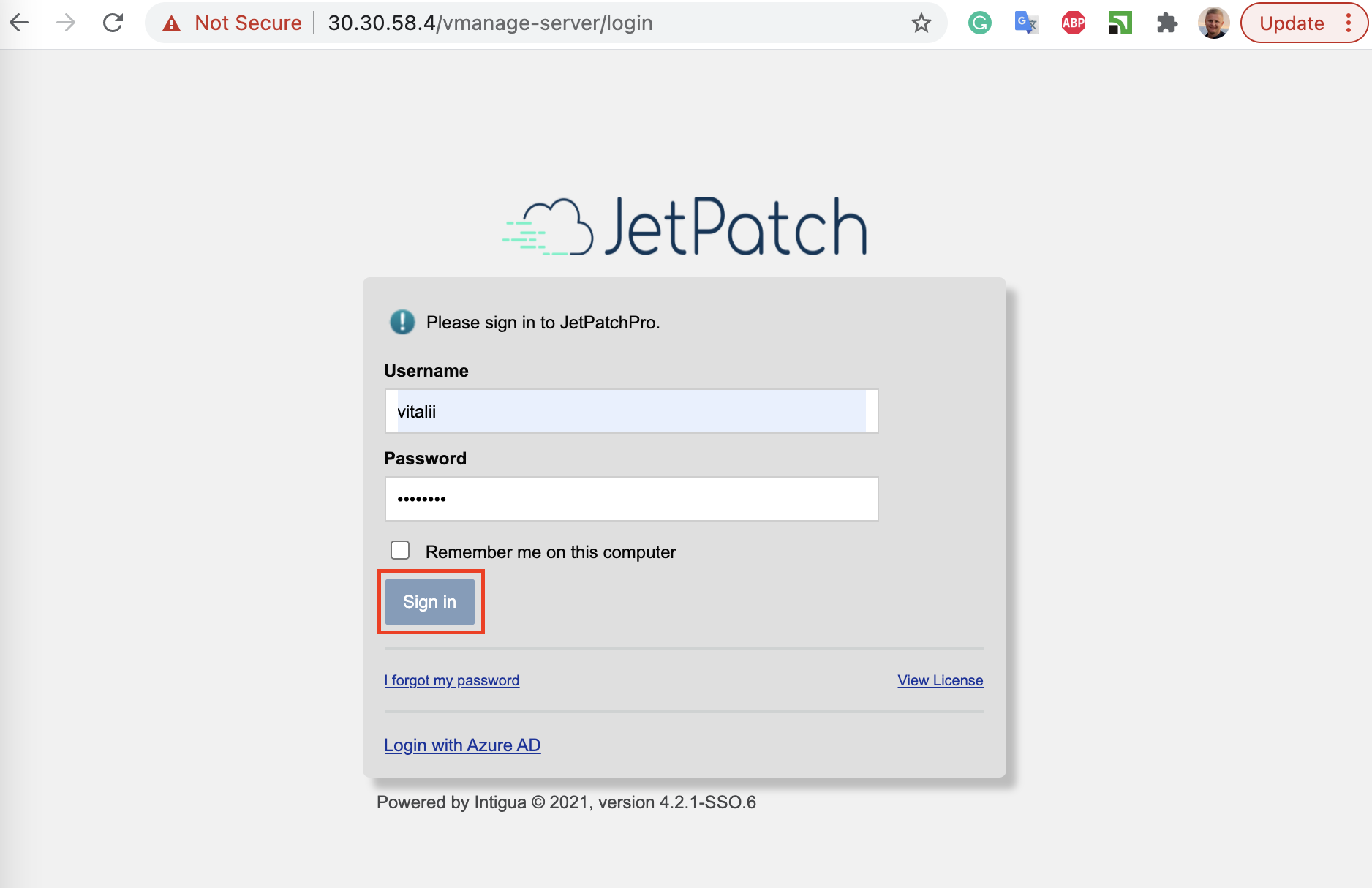

Login as standart admin user

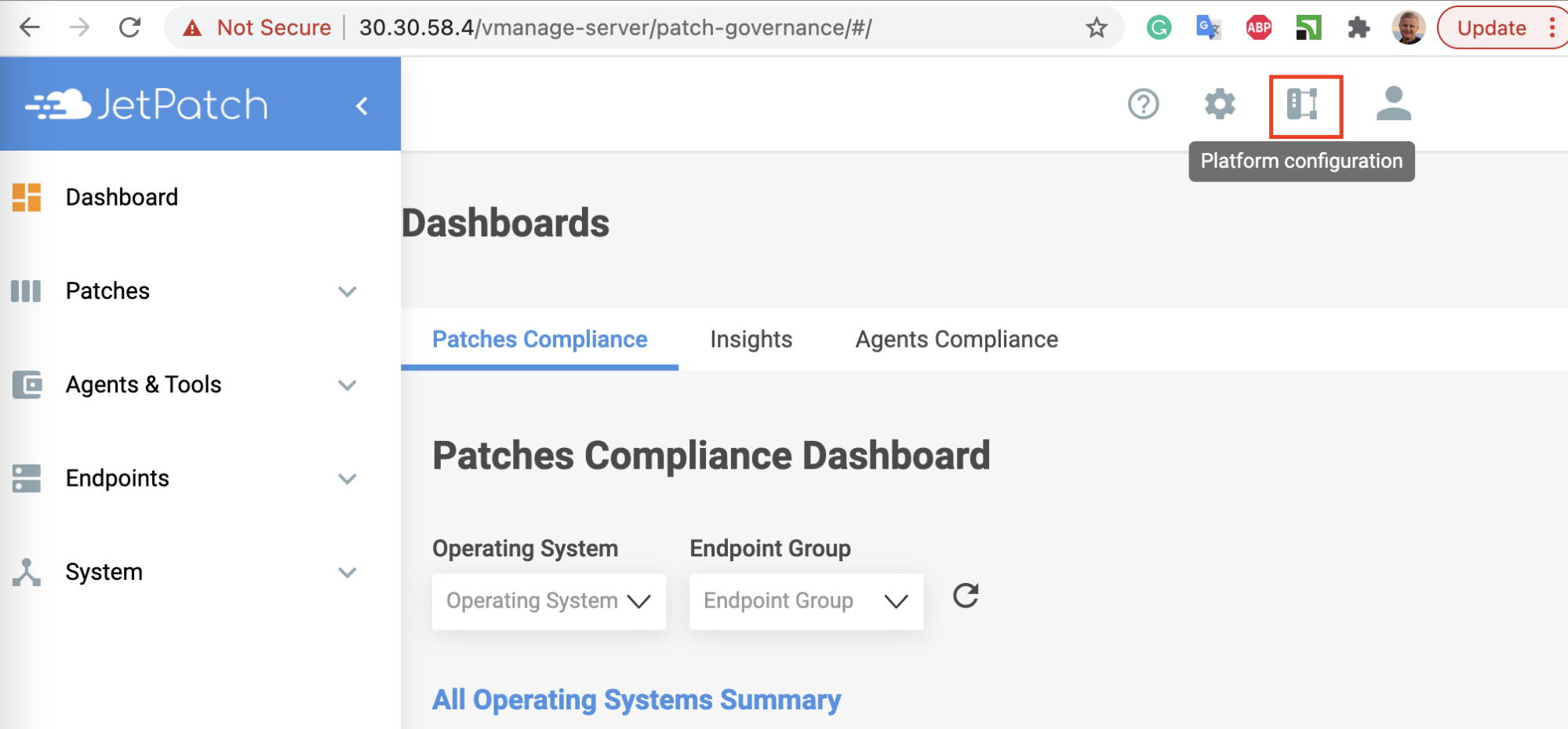

Click “Platform configuration” icon

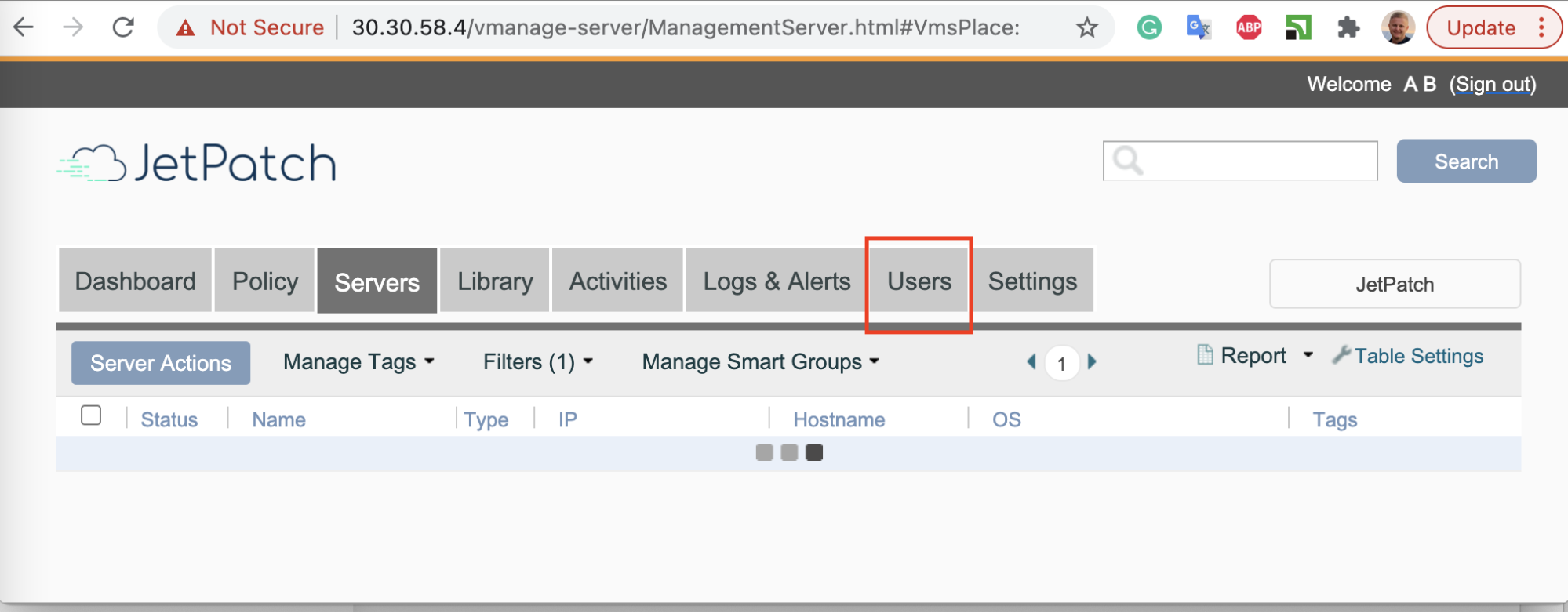

Click “Users” tab

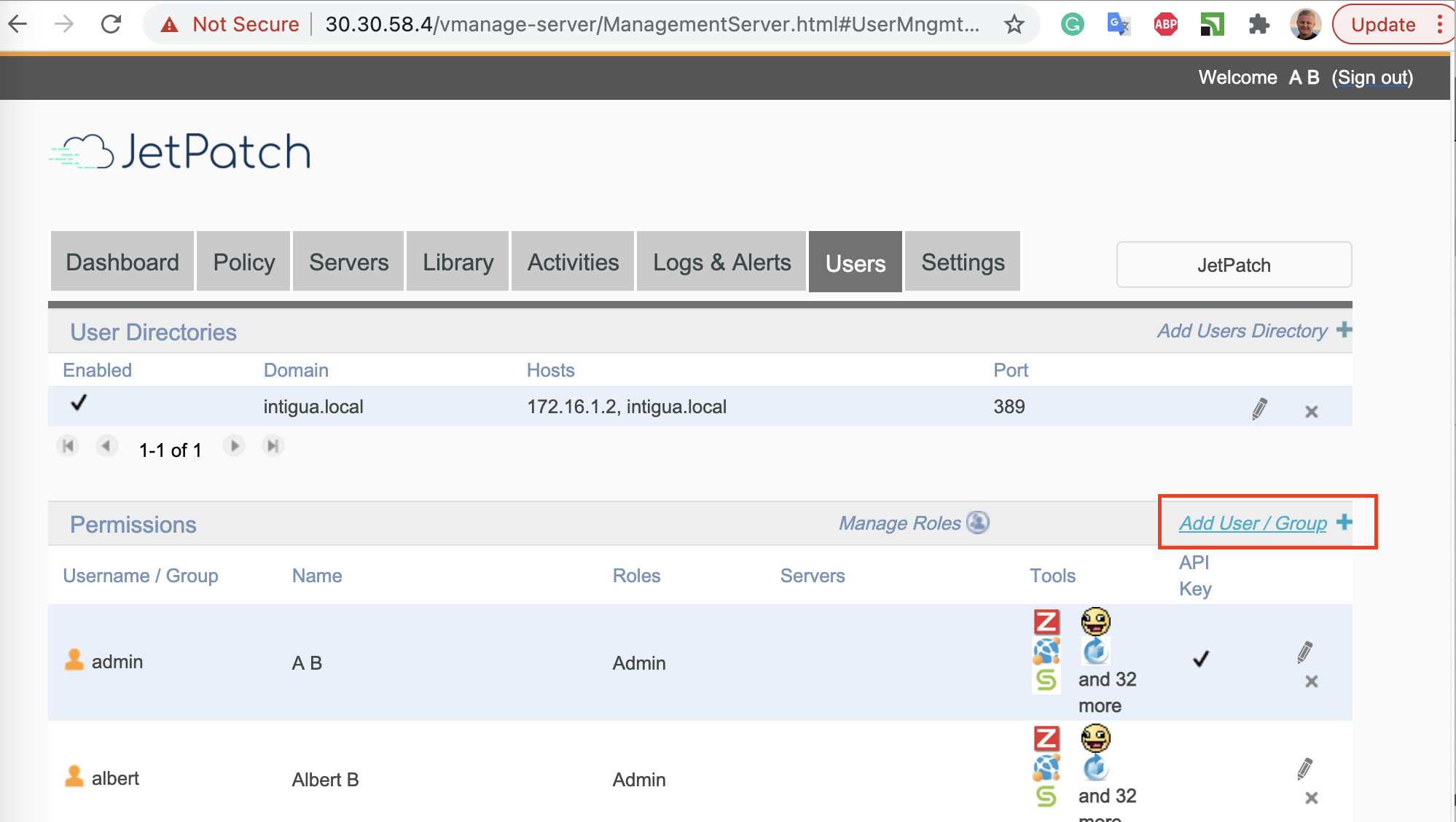

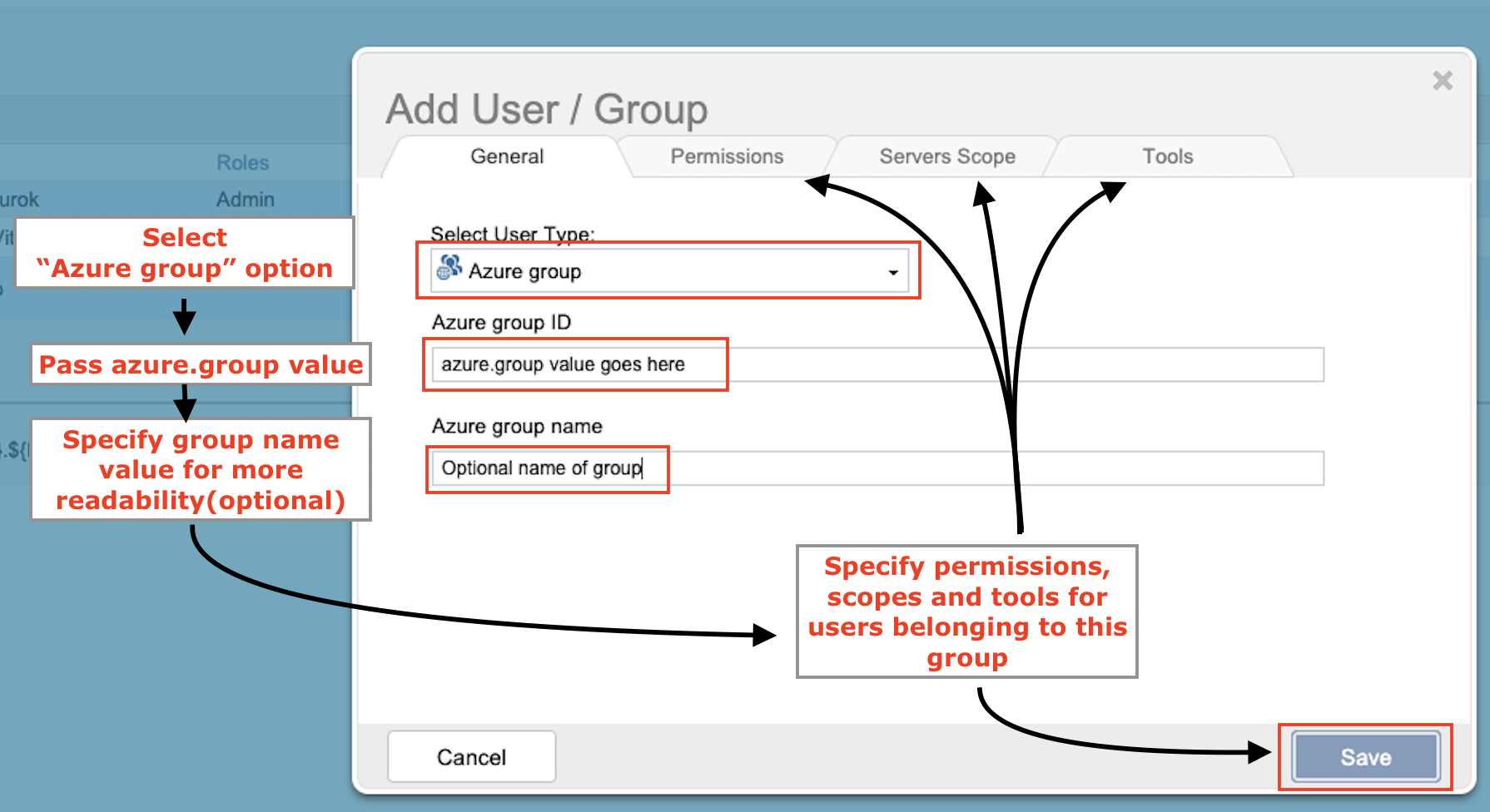

Click “Add User / Group” link


Select “Azure group” option.

Pass azure.group value into “Azure group ID” field

(Optional) Specify name for JetPatch Azure group for more readability. There is no obligation to name this group the same as the name in Azure.

Specify permissions, scopes and tools for users belonging to this group.

Click “Save” button


JrtPatch Azure group provides the possibility to manage all rights of members that belong to this group. After initial setup of groups, the customer could manage access directly from Azure AD via changing assignment of users to different groups.

Usage scenario

Login with SSO User

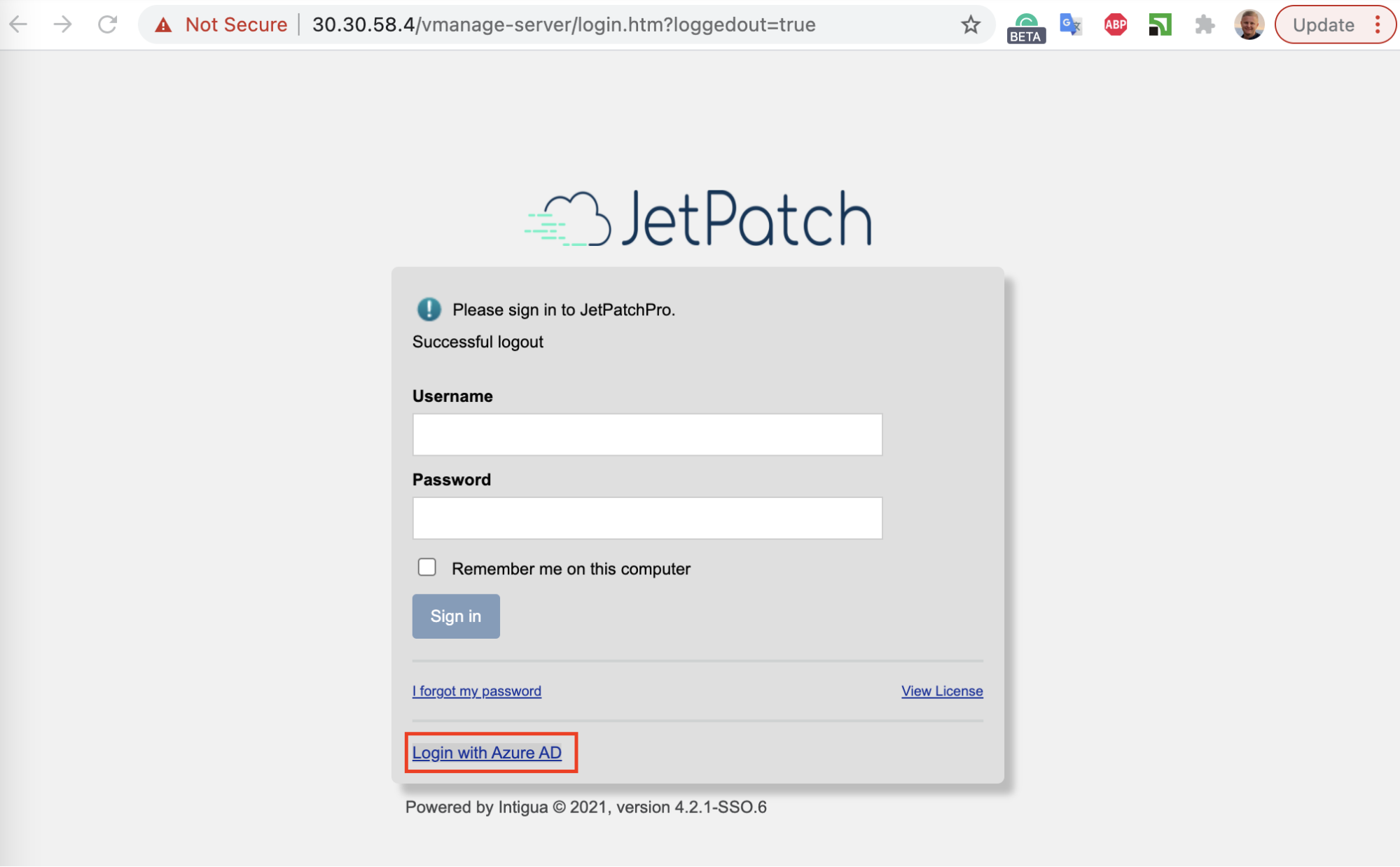

Logout and click “Login with Azure AD” link to login

image39.pngUser is already Logged in Azure AD case

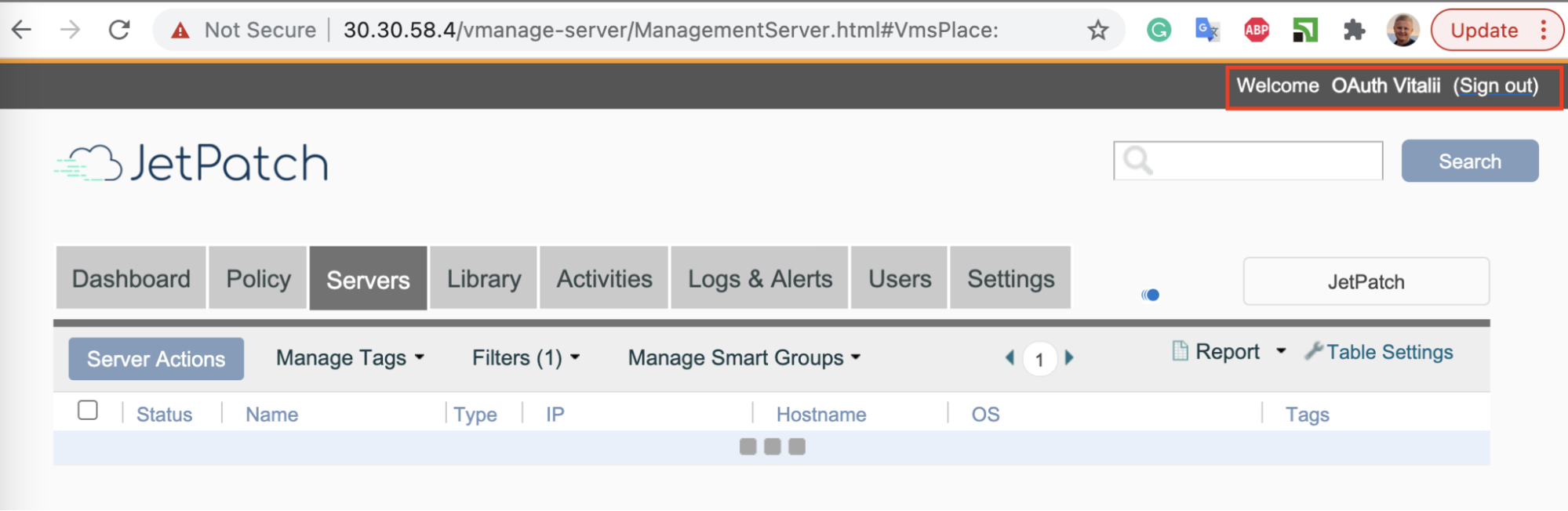

You will correctly redirected to default page


If we click “Platform configuration” icon

We will see that we are logged in with permissions of JetPatch Azure Group. Name of the logged user will correspond to the name of the Azure user.


User is not already Logged in Azure AD case

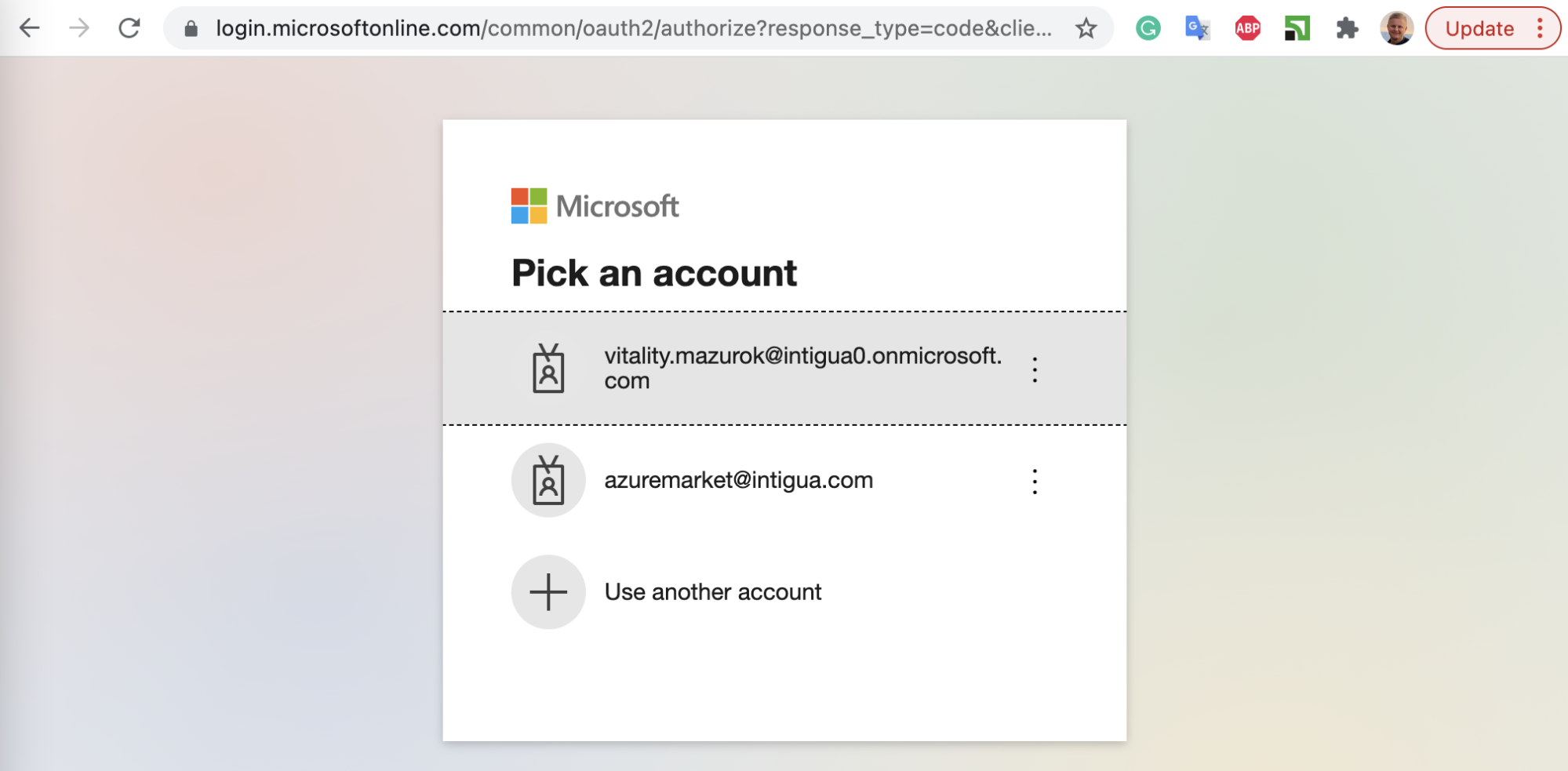

If you are not logged in with Azure AD and you click on “Login with Azure AD” link to login you will be prompted to login with Microsoft


Choose that account that has email that we specify when creating a local JetPatch user

User belongs to Azure AD tenant but it not assigned to any of Azure group case

If user it belongs to tenant but in our example not belong to jetpatch group he will see next message


User not belongs to Azure AD tenant case

If user is not belongs to tenant on which we create registration app
